Insulated Rolling Shutters Dubai & UAE

Insulated Rolling Shutters

Insulated rolling shutters use double-wall curtain profiles with an insulating core to provide better thermal and acoustic performance than conventional single-skin rolling shutters. They are suitable for openings where security, controlled access and reduction of heat transfer are all important.

In the UAE, insulated shutters are particularly useful for air-conditioned warehouses, commercial premises, workshops, garages, service areas and other openings where a conventional metal shutter can contribute to unwanted heat transfer between indoor and outdoor environments.

AZTÖR supplies and installs custom-sized insulated rolling shutters across the UAE. Each system is selected according to the structural opening, required insulation, operating frequency, available headroom, wind exposure, security requirement and intended control method.

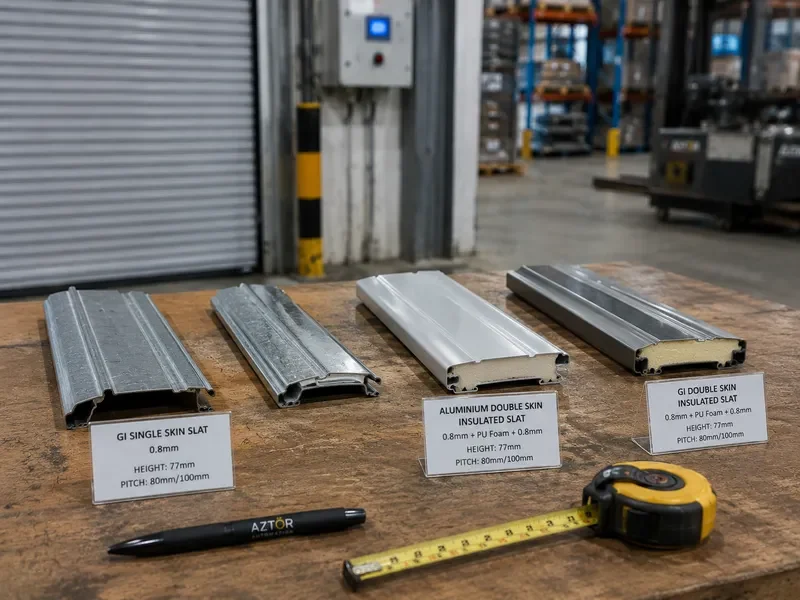

The curtain typically consists of interlocking double-wall aluminium or steel profiles containing a manufacturer-specific insulating core. Polyurethane or other insulating materials are commonly used depending on the selected shutter system. The exact profile construction should always be confirmed from the manufacturer's technical data.

An insulated shutter should not be selected from the curtain alone. Side guides, bottom rail, barrel, brackets, bearings, motor, controls and perimeter interfaces all influence the overall performance and reliability of the installed system.

AZTÖR provides a free site inspection for applicable insulated shutter projects. We measure the opening, headroom and side clearances and assess the supporting structure, expected operating frequency, indoor and outdoor conditions and automation requirements before confirming the final configuration.

Motorised operation is commonly used for insulated rolling shutters. Depending on the shutter dimensions, curtain weight and required duty, the system may use a suitable tubular, side-mounted or commercial/industrial shutter operator.

Control options can include push buttons, key switches, remote controls and compatible access-control interfaces. Suitable photocells, safety edges and other protective devices can also be incorporated according to the selected motorised shutter system and application.

Thermal performance varies significantly between products. Curtain profile design, insulation material, guide construction, gaps around the opening and overall installation all influence heat transfer. AZTÖR therefore does not publish one universal U-value or insulation figure for every insulated rolling shutter.

For air-conditioned premises, reducing uncontrolled heat transfer through frequently exposed openings can support the building's overall thermal-management strategy. However, an insulated rolling shutter should not be presented as a substitute for a fully engineered insulated wall, cold-room door or specialist high-speed environmental door where those systems are required.

Acoustic performance can also improve compared with some basic single-skin shutters because of the double-wall profile and insulating core. The actual sound reduction depends on the complete tested system and should only be quoted where manufacturer data is available.

Insulated shutters can be useful for garages and commercial vehicle entrances where the shutter forms part of the building envelope. A suitable insulated curtain can provide a more substantial closure than a basic single-skin profile while maintaining the compact vertical operation of a rolling shutter.

For warehouses and industrial buildings, operating frequency must also be considered. If an opening operates continuously throughout the day, a high-speed insulated door may be more appropriate than a conventional rolling shutter. AZTÖR can assess the traffic pattern and recommend the suitable door type rather than overspecifying a standard shutter.

External UAE installations require consideration of heat, dust, sand, humidity and wind. Large openings require particular attention to curtain strength, guide retention, supporting structure and motor duty. Coastal projects may also require suitable corrosion-resistant finishes and components.

AZTÖR can inspect existing insulated shutters for motorisation, repair or replacement. Repairs may include damaged curtain profiles, guide alignment, bottom rails, bearings, shafts, motors, limit settings, control panels, receivers and compatible safety components.

Damaged insulated profiles should be replaced with compatible sections wherever possible. Mixing unsuitable curtain profiles can affect shutter movement, appearance and performance, so the original or technically compatible system should be identified before repair.

Insulated does not automatically mean fire rated. A standard insulated rolling shutter must not be marketed as a fire-rated shutter unless the complete assembly has the appropriate fire testing and certification for the required classification.

Likewise, terms such as wind rated, acoustic rated or a specific thermal U-value should only be used when supported by technical documentation for the selected complete system.

AZTÖR provides insulated rolling shutter supply, installation, automation, repair and preventive maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable industrial door support available across the wider GCC.

Key Features

Insulated rolling shutter construction
Double-wall curtain profiles
Insulating core construction
Aluminium insulated profile options
Steel insulated profile options
Improved thermal performance
Reduced heat transfer compared with suitable single-skin shutters
Improved acoustic characteristics
Custom-made shutter sizes
Commercial and industrial applications
Residential garage applications
Air-conditioned warehouse applications
Motorised operation
Tubular motor options where suitable
Side-mounted operator options
Commercial and industrial motor options
Vertical space-saving operation
Compact overhead curtain storage
Heavy-duty side guide options
Reinforced bottom rail
Engineered barrel and shaft assembly
Push-button operation
Key-switch control
Remote-control options
Compatible access-control integration
Safety photocell options
Safety edge options
Manual emergency operation according to selected motor
Powder-coated finish options
Custom colour options subject to system
Existing shutter motorisation where suitable
Damaged profile replacement
Guide and alignment repair
Motor replacement
Limit adjustment
Control-panel troubleshooting
Preventive maintenance and AMC support

Technical Specification

Product Type	Insulated rolling shutter
Primary Function	Secure rolling closure with improved thermal performance
Curtain Construction	Double-wall insulated interlocking profiles
Curtain Material	Aluminium, steel or manufacturer-specific construction
Insulation Core	Polyurethane or manufacturer-specific insulating material
Profile Thickness	Manufacturer and system specific
Thermal Performance	According to selected profile and complete system
U-Value	Manufacturer and tested-system specific where available
Acoustic Performance	Manufacturer and system specific where documented
Opening Size	Custom manufactured according to site dimensions
Operation	Manual or motorised according to selected system
Motor Type	Tubular, side-mounted or suitable commercial/industrial operator
Motor Capacity	Selected according to curtain weight, dimensions and operating duty
Duty Cycle	According to selected operator and operating frequency
Barrel / Shaft	Sized according to shutter dimensions and curtain construction
Side Guides	Aluminium, galvanized steel or system-specific guides
Bottom Rail	Reinforced system-specific profile
Brackets	Selected according to shutter load and supporting structure
Bearings	Suitable for shaft and operating load
Control	Push button, key switch, remote or compatible access-control interface
Remote Control	Available with compatible receiver and controller
Limit Control	Operator specific
Safety Photocells	Available where required and compatible
Safety Edge	Available on suitable motorised configurations
Manual Override	According to selected operator
Power Supply	According to selected motor and project electrical provision
Finish	Powder-coated, galvanized or manufacturer-specific
Colour	Subject to selected system and finish availability
External Application	Specification selected according to environmental exposure
Wind Requirement	Project specific and engineered where required
Fire Rating	Only where a separately tested and documented fire-rated system is specified
Installation	New installation, replacement or suitable existing-shutter automation
Maintenance	Curtain, guides, shaft, bearings, motor, controls and safety-device service available

Insulation performance depends on the complete shutter system rather than the presence of an insulated curtain profile alone. Profile construction, insulating core, guides, perimeter gaps, opening dimensions and installation all influence performance. AZTÖR carries out a free site inspection before confirming the shutter and motor configuration. Specific U-values, acoustic ratings, wind ratings or fire classifications are only stated where supported by technical documentation for the selected system.

Typical Applications

Air-conditioned warehouses
Warehouses
Logistics facilities
Distribution centres
Factories
Manufacturing facilities
Industrial buildings
Commercial buildings
Workshops
Service centres
Automotive workshops
Vehicle entrances
Residential garages
Villa garages
Commercial garages
Basement entrances
Storage facilities
Equipment rooms
Plant areas
Building service entrances
Loading areas
Back-of-house entrances
Hotels
Retail service entrances
Food storage facilities where suitable
Temperature-sensitive commercial areas
Climate-controlled facilities
Existing shutter replacements
Building envelope openings
Industrial door upgrade projects

Frequently Asked Questions

An insulated rolling shutter uses double-wall curtain profiles containing an insulating material to provide better thermal characteristics than a conventional single-skin shutter.

Depending on the selected system, the profile may contain polyurethane or another manufacturer-specific insulating material between the outer walls.

Yes. AZTÖR provides a free site inspection for applicable insulated rolling shutter requirements to assess the opening, structure, operating frequency, environmental conditions and automation requirements.

Yes, when correctly specified. They can be particularly useful where an opening separates an air-conditioned interior from the UAE's hot external environment.

They can reduce heat transfer compared with suitable non-insulated shutter constructions, but actual performance depends on the profile, guides, perimeter gaps and complete installation.

There is no universal U-value for all insulated shutters. Where thermal performance is important, AZTÖR uses the documented value for the selected manufacturer and system.

For thermal transmittance, a lower documented U-value generally indicates lower heat transfer through the tested element. Comparisons should use equivalent test methods and complete-system data.

It can help reduce conductive heat transfer through the closed opening, but air leakage, operating frequency and the surrounding building envelope also affect overall cooling performance.

Not completely. Conventional rolling shutters require operating clearances around the curtain and guides. Where strict air leakage control is required, a specialist sealed door system may be more appropriate.

They may suit certain temperature-controlled openings, but dedicated cold-room or high-speed insulated doors are often more appropriate where strict temperature, hygiene or air-infiltration control is required.

An insulated shutter typically uses a double-wall profile with an insulating core, while a basic shutter may use a single-skin metal profile without dedicated thermal insulation.

Aluminium describes the curtain material, while insulated describes its construction and thermal purpose. An insulated shutter can itself use double-wall aluminium profiles.

Yes. Depending on the selected system, insulated profiles may be manufactured from steel, aluminium or another documented construction.

The double-wall construction and insulating core can improve acoustic characteristics compared with some single-skin shutters, but a specific sound-reduction rating should only be quoted where supported by tested data.

They can be motorised using an operator selected according to the shutter size, curtain weight and operating frequency.

Depending on the shutter design, a tubular, side-mounted or commercial/industrial operator may be used. The motor should be selected from the actual shutter load and duty.

Yes. Compatible radio receivers and remote controls can be provided with suitable motorised systems.

Yes. Push-button operation is commonly used for commercial and industrial insulated shutters.

Yes. A suitable key switch can provide controlled local operation.

Yes. Compatible access-control systems can trigger suitable shutter controllers where the operating and safety logic is correctly designed.

Yes. Suitable photocells can be incorporated into compatible motorised shutter systems where required.

Yes. Compatible bottom safety edges can be used on suitable motorised configurations.

The response depends on the selected motor and control system. Suitable operators can provide a manual emergency operation or another project-specific backup arrangement.

Yes, within the dimensional and performance limits of the selected system. Large openings require suitable curtain profiles, guides, shaft, supports and motor capacity.

It depends on operating frequency. For very frequent opening and closing, a high-speed insulated door may provide a better solution than a conventional rolling shutter.

Yes. Large external shutters can experience substantial wind loads. The curtain, guides, retention, fixing structure and project-specific wind requirements should be considered.

Not automatically. Insulation and fire resistance are different characteristics. A shutter should only be described as fire rated when the complete system has appropriate testing and certification.

Only if a specific complete shutter system has documented fire performance for the required configuration. An ordinary insulated curtain cannot simply be labelled fire rated.

Yes, where the selected manufacturer provides documented thermal-performance data for the applicable shutter configuration.

Yes, where compatible profiles are available and the remaining curtain is serviceable. Matching the correct profile is important for proper operation.

Possible causes include damaged profiles, misaligned guides, worn bearings, shaft problems, debris, motor faults or incorrect limit settings.

Often, yes, if the curtain, guides, shaft, bearings and supporting components are mechanically suitable for motorisation.

Yes, provided the existing shutter remains mechanically suitable and an appropriately sized compatible operator is available.

Yes. AZTÖR can inspect suitable third-party systems and provide repairs subject to equipment condition and availability of compatible components.

Yes. Maintenance can cover curtain profiles, guides, shaft, bearings, motor, limits, controls and safety equipment according to the agreed scope.

AZTÖR supplies, installs and services insulated rolling shutters across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable industrial door support available across the wider GCC.

Get a quote for Insulated Rolling Shutters

Send us the opening dimensions or book a free inspection — we will come back with a specification and a price.
