Video Storage
Video Storage is one of the most important parts of a CCTV system. Cameras may capture excellent video, but the surveillance system is only useful if footage is recorded reliably, retained for the required period and available when an incident needs to be investigated.
AZTÖR Automation designs CCTV Video Storage solutions for offices, warehouses, factories, malls, hotels, residential communities, data centres, logistics facilities and large multi-camera surveillance systems across the UAE.
Storage should never be selected by hard-drive size alone. The required capacity depends on the number of cameras, resolution, frame rate, video compression, recording schedule, scene activity and required retention period.

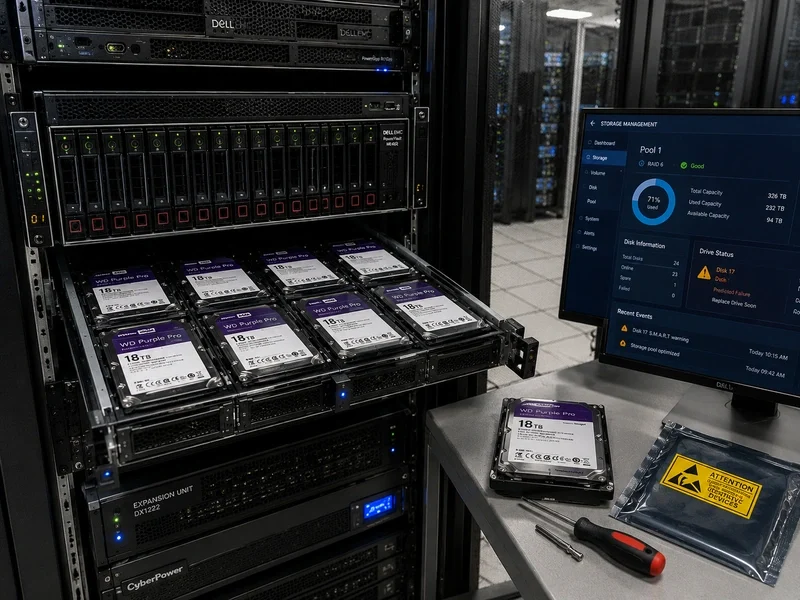

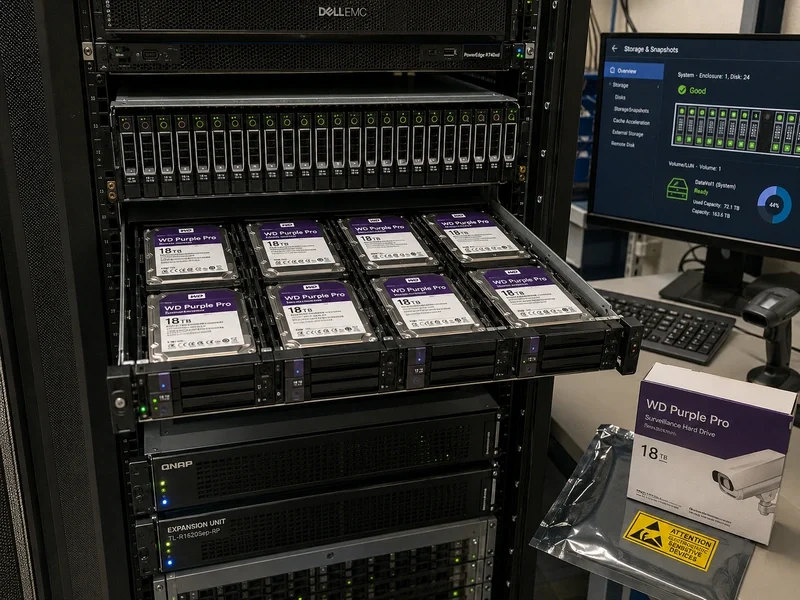

For smaller CCTV systems, storage may be provided directly through surveillance-grade hard drives installed inside an NVR. Larger installations may require multi-bay NVRs, RAID storage, NAS, dedicated recording servers or enterprise storage architecture.
AZTÖR calculates storage based on the actual recording requirement. Continuous 24-hour recording, motion-based recording and event-based recording can produce very different storage requirements even when the same cameras are used.
High-resolution and AI CCTV systems require additional planning. 4K cameras, Multi-Sensor Cameras, PTZ Cameras and large camera networks can generate significant recording bandwidth, so both storage capacity and write performance need to be considered.
For critical installations, RAID and redundant storage options can improve resilience against individual drive failures. RAID is not a substitute for backup, however, and the appropriate redundancy strategy depends on the importance of the recorded footage.
Cloud and hybrid storage can also be considered where appropriate. Selected footage or events can be stored through cloud-connected platforms while local NVR or server storage continues to provide primary recording.
AZTÖR can upgrade existing CCTV storage where retention has become too short, additional cameras have been installed, hard drives are failing or the existing recorder has reached its supported storage capacity.
We provide CCTV storage calculation, surveillance HDD replacement, NVR storage upgrades, RAID configuration, recording-server integration and maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable project support across the GCC.
Key Features
- CCTV Video Storage
- Surveillance-Grade HDD Storage
- NVR Storage Solutions
- High-Capacity Video Storage
- CCTV Storage Calculation
- Recording Retention Planning
- 24/7 Recording Storage
- Event-Based Recording
- Motion-Based Recording
- Multi-HDD Storage
- RAID Storage Options
- Storage Redundancy
- Hot-Swap HDD Options
- NAS Storage Integration
- Recording Server Storage
- Enterprise CCTV Storage
- Centralised Video Storage
- Distributed Storage Options
- Edge Storage Options
- Cloud Storage Options
- Hybrid Video Storage
- Storage Expansion
- 4K CCTV Storage
- Multi-Camera Storage
- VMS Storage Integration
- HDD Health Monitoring
- Failed HDD Replacement
- Existing Storage Upgrades
- System Configuration
- Preventive Maintenance & AMC
Technical Specification
| Solution Type | CCTV / Video Surveillance Storage |
|---|---|
| Storage Architecture | NVR / Server / NAS / Edge / Cloud / Hybrid |
| Storage Media | Surveillance HDD / Enterprise HDD / SSD Where Applicable |
| Drive Interface | SATA / SAS / Platform Specific |
| Individual Drive Capacity | Manufacturer & Platform Specific |
| Number of Drive Bays | Recorder / Server Specific |
| Total Raw Capacity | Drive Quantity & Capacity Specific |
| Usable Capacity | RAID & System Configuration Specific |
| Recording Retention | Project Requirement Specific |
| Camera Capacity | Recorder / Server Architecture Specific |
| Camera Resolution | Camera & Storage Design Specific |
| Recording Resolution | Camera / NVR / VMS Specific |
| Frame Rate | Recording Requirement Specific |
| Video Compression | H.265+ / H.265 / H.264, Platform Specific |
| Recording Mode | Continuous / Motion / Event / Scheduled |
| Recording Bandwidth | Camera & System Specific |
| Write Throughput | Storage Architecture Specific |
| Read Throughput | Playback & Architecture Specific |
| RAID | RAID 0 / 1 / 5 / 6 / 10 on Suitable Systems |
| Hot Spare | Available on Suitable Systems |
| Hot-Swap Drives | Available on Suitable Systems |
| Storage Redundancy | Architecture Specific |
| NVR Storage | Supported |
| VMS Storage | Supported |
| Recording Server | Available |
| NAS Integration | Available on Compatible Systems |
| SAN Integration | Available on Enterprise Systems |
| Edge Storage | microSD / Camera Storage, Model Specific |
| Cloud Storage | Available on Suitable Platforms |
| Hybrid Storage | Local + Cloud Options |
| Failover Recording | Available on Suitable Architectures |
| Storage Health Monitoring | Available on Suitable Systems |
| HDD Failure Alerts | Available on Suitable Systems |
| Retention Management | Platform Specific |
| Automatic Overwrite | Configurable |
| Video Export | Platform Specific |
| Network Interface | Gigabit / 10GbE / Architecture Specific |
| Cybersecurity | Platform & Deployment Specific |
| Power Redundancy | Available on Suitable Enterprise Systems |
| UPS Integration | Recommended for Critical Systems |
| Installation Type | New Installation / Expansion / Storage Upgrade |
CCTV storage should be calculated from the actual recording workload rather than using a fixed number of days per hard drive. Camera count, bitrate, resolution, frame rate, compression, recording mode and retention period all affect capacity. RAID also reduces usable storage compared with raw installed capacity. AZTÖR Automation assesses the complete recording requirement before recommending the appropriate NVR, HDD, server or enterprise storage architecture.
Typical Applications
- Commercial CCTV Systems
- Office Buildings
- Shopping Malls
- Retail Stores
- Hotels
- Hospitals
- Schools & Universities
- Residential Communities
- Warehouses
- Logistics Centres
- Factories
- Industrial Facilities
- Data Centres
- Parking Facilities
- Security Control Rooms
- Multi-Site CCTV Systems
- High-Camera-Count Projects
- 4K CCTV Systems
- AI Surveillance Systems
- Enterprise Video Surveillance
