Automatic Bi-Folding Gates Dubai & UAE

Bi-Folding Gates

Bi-folding gates divide each operating gate leaf into two connected panels that fold together as the entrance opens. This reduces the space required inside the driveway compared with a conventional swing gate while still providing a wide and practical vehicle entrance.

They are particularly useful at UAE properties where entrance width is generous but driveway depth is restricted. Villas, commercial compounds, warehouses, logistics facilities, schools and controlled vehicle entrances can benefit from a bi-fold arrangement where conventional swing leaves would occupy too much usable space.

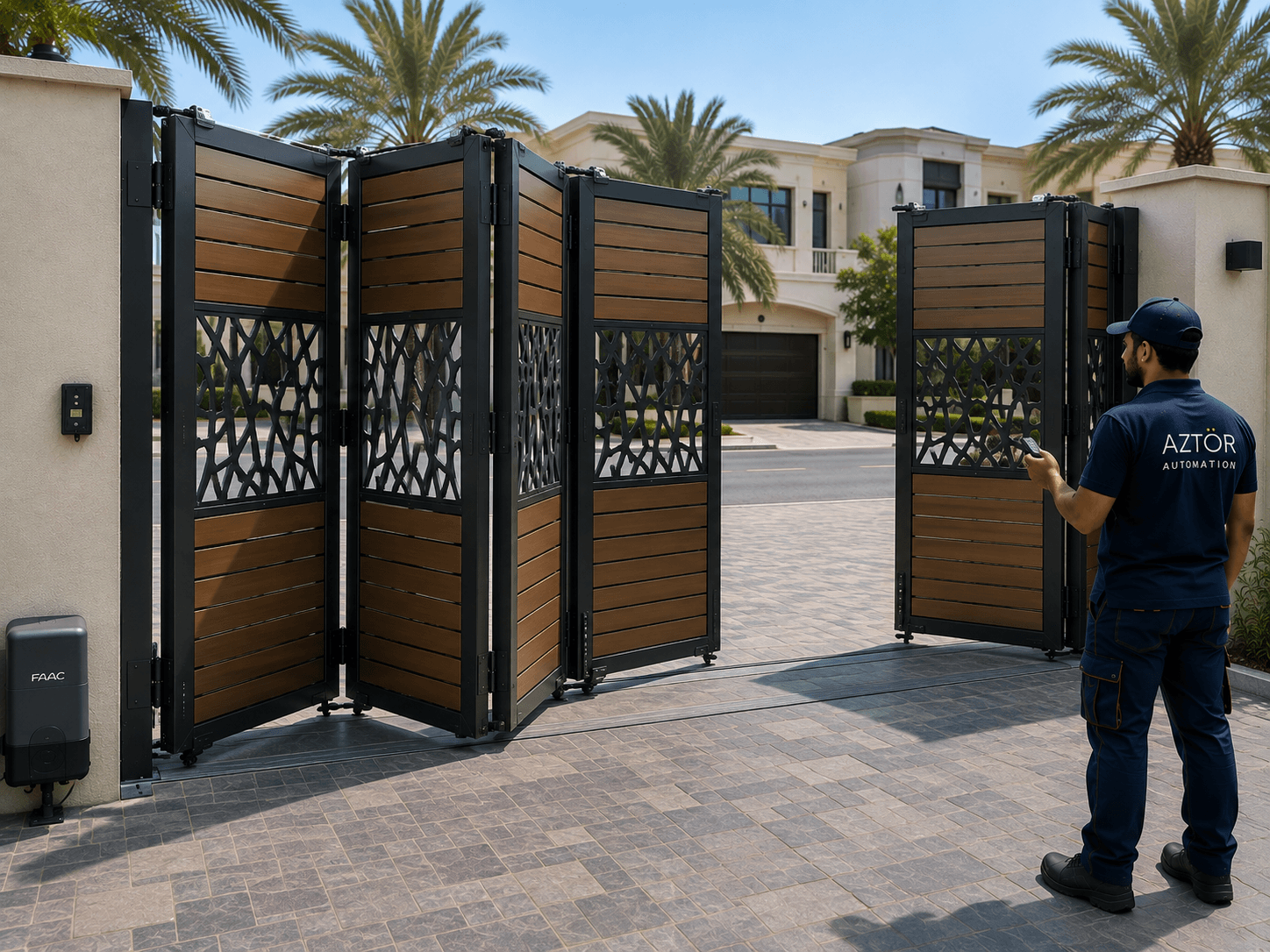

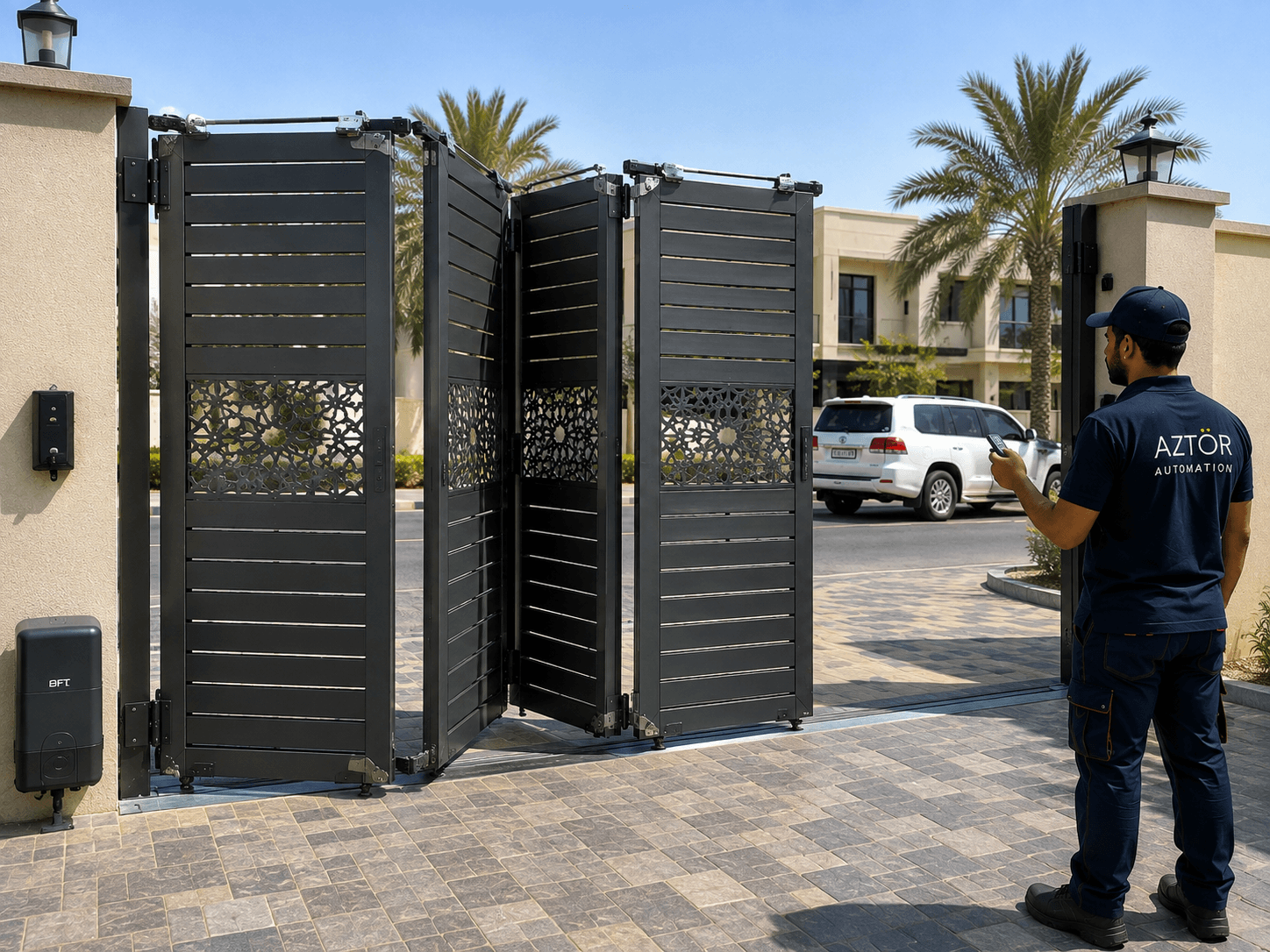

A typical double bi-folding entrance uses two connected panels on each side, creating four gate panels across the complete opening. Single-sided configurations can also be considered where the entrance geometry requires all folding movement toward one side.

Bi-folding gates should be engineered as a complete mechanical system. Panel dimensions and weight, hinge positions, folding linkages, gate posts, foundations, opening angles and alignment all affect how the panels travel. Small errors in the geometry can become significant once automation is added.

AZTÖR provides a free site inspection before recommending a bi-folding gate configuration. We assess the clear opening, available folding depth, panel dimensions, gate construction, structural posts, driveway slope, vehicle approach, pedestrian movement, wind exposure, operating frequency, power supply and required access controls.

Automatic bi-folding gates use coordinated operators and mechanical folding arrangements to move the connected panels. Depending on the gate design, automation may use appropriate swing-gate operators combined with a purpose-designed folding mechanism or a specialist bi-fold gate automation solution. The exact arrangement must be confirmed for the gate rather than assuming that any conventional swing motor will be suitable.

For suitable projects, AZTÖR can engineer automation around equipment from established manufacturers such as FAAC, CAME, BFT, Nice, Benincà and other technically appropriate gate automation brands available in the UAE and GCC. Operator selection is based on individual panel dimensions, total moving load, hinge geometry, operating frequency and site conditions.

Automatic bi-folding gates can operate from remote transmitters, push buttons, keypads, card readers, biometric readers and intercom systems. UHF vehicle tags, ANPR and compatible smart or GSM access systems can also be incorporated where controlled vehicle identification is required.

Safety requires particular attention around the gate sweep, folding joints and closing areas between panels. Depending on the design and risk assessment, photocells, safety edges, obstacle detection, warning lights and other protective devices can be incorporated around the entrance.

AZTÖR also repairs and modernises existing bi-folding gates. Faults may originate from the automation or from worn hinges, incorrect linkage geometry, damaged rollers or guides, gate misalignment, control-board faults, sensors or structural movement. The complete mechanical gate should therefore be inspected before replacing the motor.

AZTÖR provides bi-folding gate design support, automation, installation, repair and preventive maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable commercial and industrial projects supported across the wider GCC.

Key Features

Compact bi-folding vehicle gate design
Two connected folding panels per operating leaf
Single-sided and double-sided configurations
Four-panel double bi-fold gate arrangements
Reduced driveway sweep compared with conventional swing gates
Suitable for entrances with restricted internal depth
Manual and automatic operation options
Steel and aluminium gate construction options
Heavy-duty folding hinges
Purpose-designed folding linkage arrangements
Coordinated automatic panel movement
Residential gate automation options
Commercial and industrial automation options
Remote control operation
Push-button operation
Keypad and card reader integration
Biometric access integration
Intercom and video intercom integration
UHF vehicle identification integration
ANPR integration where required
Compatible GSM and smart-access options
Safety photocell integration
Safety edge options where required
Obstacle detection according to selected automation
Warning light integration
Manual emergency release
Existing bi-fold gate automation and upgrade
Preventive maintenance and breakdown repair

Technical Specification

Gate Type	Bi-folding vehicle access gate
Configuration	Single-sided or double-sided bi-fold
Panel Arrangement	Two connected panels per folding leaf
Typical Double Arrangement	Four panels across the complete entrance
Operation	Manual or automatic
Gate Construction	Steel, aluminium or project-specific construction
Folding Direction	Inward, outward or project-specific subject to site requirements
Drive System	Compatible automatic gate operator with engineered folding mechanism
Operator Type	Selected according to gate geometry and automation design
Folding Mechanism	Mechanical linkage, guided arrangement or specialist bi-fold system
Motor Capacity	Selected according to individual panel dimensions, weight and operating load
Hinges	Heavy-duty primary and intermediate folding hinges
Opening Angle	Determined by panel geometry and folding arrangement
Duty Cycle	Residential, commercial or industrial according to selected automation
Power Supply	According to selected operator and project electrical provision
Control	Remote, push button, keypad, access control or authorised system
Safety Photocells	Available according to entrance safety requirements
Safety Edges	Available where required
Obstacle Detection	According to selected operator and safety configuration
Warning Light	Available where specified
Manual Release	Emergency manual release on compatible operators
Access Control	Card, biometric, keypad, intercom or compatible third-party system
Vehicle Identification	UHF, ANPR or compatible vehicle-access system where required
Finish	Powder-coated, galvanised or project-specific architectural finish
Installation	New bi-fold gate, suitable existing-gate automation or system replacement
Maintenance	Operators, hinges, linkages, alignment, sensors and controls servicing available

Bi-folding gate performance depends heavily on correct panel geometry, hinge positioning, folding linkage, structural support and mechanical alignment. AZTÖR confirms the gate configuration, operator capacity, linkage arrangement, controls and safety devices after a free site inspection. Existing bi-fold gates must move freely and fold correctly before automation is installed or replaced.

Typical Applications

Private villas
Luxury residences
Townhouse developments
Residential compounds
Gated communities
Commercial properties
Corporate compounds
Office entrances
Warehouses
Logistics centres
Distribution facilities
Factories
Manufacturing plants
Industrial compounds
Service yards
Schools and universities
Hotels and resorts
Government facilities
Staff accommodation
Restricted-depth driveways
High-security vehicle entrances
Controlled vehicle access points
Existing swing gate replacement projects
Entrances with limited opening space

Frequently Asked Questions

A bi-folding gate divides a gate leaf into two connected panels that fold together during opening. This reduces the amount of driveway space required for the gate movement.

Folding gates is the broader category covering different multi-panel arrangements. A bi-folding gate specifically uses two connected panels for each folding leaf, creating a compact and predictable folding movement.

A typical double arrangement has two connected panels on each side of the entrance. As the gate opens, each pair folds together toward its respective side, creating a clear central vehicle passage.

Yes. AZTÖR provides a free site inspection for applicable bi-folding gate projects to assess the opening, available folding space, gate dimensions, structure, driveway, traffic, power and automation requirements.

A conventional swing leaf requires a larger opening arc. Dividing the leaf into two folding sections reduces the depth occupied by the gate as it opens, which can be valuable where driveway space is limited.

A sliding gate travels horizontally along the boundary and requires sufficient side run-back space. A bi-fold gate folds around hinged sections, making it useful where adequate sliding run-back is unavailable.

Yes. They are particularly useful for villas with wide vehicle entrances but relatively short driveways where conventional swing gates could interfere with parked vehicles or usable driveway space.

Yes. Properly engineered systems can be used at commercial and industrial entrances, provided the gate construction, automation and folding hardware are selected for the dimensions, operating frequency and environmental conditions.

A bi-fold arrangement can reduce the travel required at the entrance, and specialist systems may be designed for faster vehicle access. Actual opening time depends on the gate geometry, operator, safety settings and selected system.

Sometimes, but it normally requires significant mechanical modification. The existing leaves, posts and foundations must be assessed because additional panels, hinges and folding linkages change the gate geometry and loading.

Yes, if the gate is mechanically suitable. AZTÖR checks the hinges, folding linkage, panel alignment, posts and movement before selecting an automation system.

Depending on the engineered gate configuration, suitable automation may use equipment from FAAC, CAME, BFT, Nice, Benincà or other appropriate manufacturers available in the UAE and GCC.

Not without checking the complete geometry. Some engineered bi-fold systems can use compatible swing operators with a suitable folding mechanism, while other gates require specialist automation. Operator compatibility must be confirmed for the actual gate.

Yes. Compatible automatic systems can be operated using remote transmitters, push buttons and other authorised access methods.

Yes. Compatible GSM or smart-access controls can be incorporated where mobile operation is required.

Yes. Suitable systems can integrate with card readers, biometric readers, keypads, intercoms and other compatible access-control equipment.

Yes. UHF vehicle tags and compatible ANPR systems can be integrated for residential communities, staff entrances, commercial compounds and other controlled vehicle-access applications.

Depending on the entrance, photocells, safety edges, obstacle detection and warning devices can be used. Particular attention should be given to the sweep area, folding joints and closing points between moving panels.

The operator relies on the mechanical gate moving through the correct geometry. Worn hinges, incorrect linkage lengths or poor alignment can cause uneven folding, excessive motor load and unreliable operation.

Compatible operators provide a manual release arrangement, while selected systems may also support battery or backup-power options.

Yes. We can inspect suitable existing systems for faults involving motors, hinges, folding linkages, controls, sensors, alignment and other mechanical components, subject to equipment condition and spare-part availability.

Yes. AZTÖR provides preventive maintenance for operators, hinges, folding mechanisms, control boards, photocells, safety devices, access controls and mechanical alignment according to the agreed scope.

AZTÖR provides bi-folding gate installation, automation, repair and maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable project support across the wider GCC.
