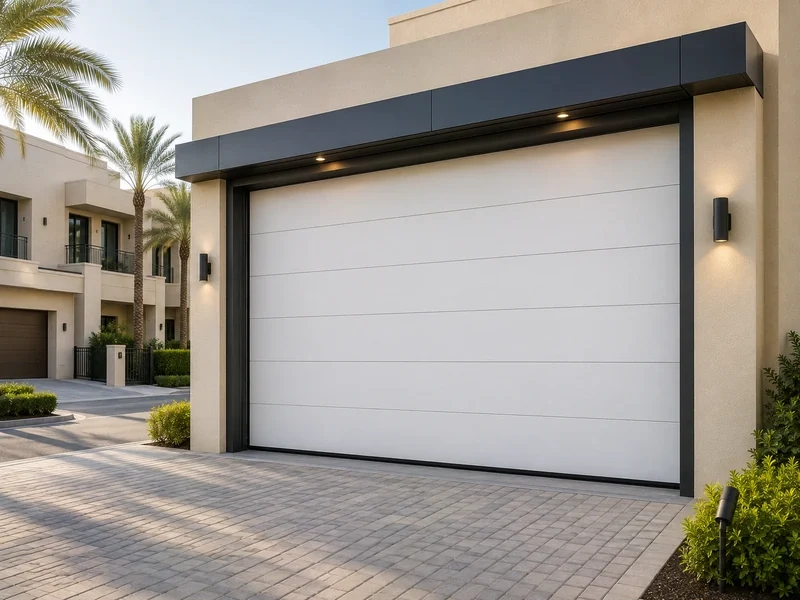

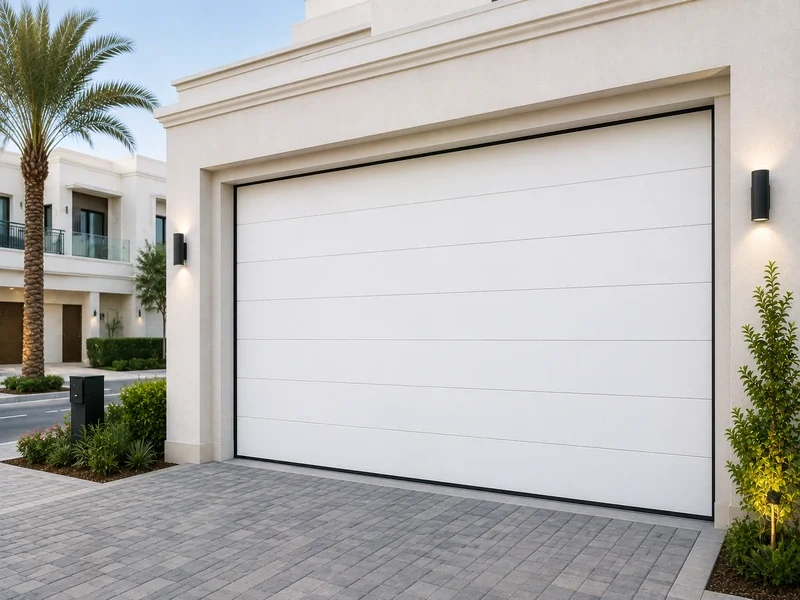

Automatic Sectional Garage Doors
Automatic Sectional Garage Doors are one of the most practical choices for modern villas and private garages. The door is made from horizontal hinged panels that rise vertically before travelling along tracks inside the garage, allowing vehicles to park close to the entrance without requiring the door to swing outward.
AZTÖR Automation supplies and installs automatic sectional garage doors for villas, townhouses, residential compounds and private garages across the UAE.
Insulated sandwich panels are available for projects where better thermal performance, rigidity and a premium finished appearance are required. Panel thickness, construction and insulation performance vary according to the selected garage-door system.
Different panel designs and finishes can be selected to complement modern or traditional villa architecture. Options can include smooth, ribbed, wood-effect and other manufacturer-specific finishes, with glazing sections available on suitable systems.
Track configuration is selected according to the garage structure. Standard lift, low-headroom and high-lift arrangements can be considered depending on the available headroom, ceiling height and internal services.
A properly balanced sectional door should move smoothly before automation is added. Door weight, torsion springs, cables, drums, tracks, rollers and operator capacity must work as one system rather than relying on the motor to overcome mechanical resistance.
Automatic operation can include handheld remotes, wall controls and key switches. Compatible operators can also provide mobile access, GSM control and Smart Home integration for villas requiring connected garage automation.
Safety photocells can monitor the vehicle path, while suitable operators may provide force monitoring, obstacle detection and safety-edge integration. Anti-lift and additional security functions are available on selected door and operator systems.
AZTÖR also upgrades and repairs existing sectional garage doors. Services include motor replacement, broken spring and cable replacement, track and roller adjustment, control-board repair, remote programming, sensor replacement and automation upgrades.
AZTÖR provides Automatic Sectional Garage Door installation, automation, repair and maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with free site inspection and suitable GCC project support.
Key Features
- Automatic Sectional Operation
- Vertical Opening
- Overhead Track System
- Insulated Sandwich Panels
- Double-Wall Panel Options
- Thermal Insulation Options
- Multiple Panel Designs
- Custom Colour & Finish Options
- Window & Glazing Options
- Standard Lift Tracks
- Low-Headroom Options
- High-Lift Track Options
- Balanced Torsion Spring System
- Motorised Operation
- Remote Control Access
- Wall Switch Control
- Key Switch Control
- Mobile Control Options
- GSM Controller Integration
- Smart Home Integration
- Safety Photocells
- Safety Edge Options
- Obstacle Detection Options
- Anti-Lift Options
- Soft Start & Stop on Suitable Operators
- Manual Emergency Release
- Battery Backup Options
- Spring & Cable Replacement
- Motor & Control Repair
- Preventive Maintenance & AMC
Technical Specification
| Door Type | Automatic Sectional Garage Door |
|---|---|
| Operation | Vertical Lift with Overhead Track |
| Application | Villa / Residential / Private Garage |
| Door Construction | Horizontal Hinged Sections |
| Panel Material | Steel / Aluminium / System Specific |
| Panel Type | Single-Wall / Double-Wall / Insulated |
| Insulation | Polyurethane / Manufacturer Specific |
| Panel Thickness | Manufacturer & Model Specific |
| Panel Design | Smooth / Ribbed / Wood-Effect / Model Specific |
| Glazing | Optional |
| Opening Width | Project Specific |
| Opening Height | Project Specific |
| Door Dimensions | Custom Manufactured |
| Door Weight | Panel, Size & Configuration Specific |
| Track Configuration | Standard Lift / Low Headroom / High Lift |
| Track Material | Galvanised Steel / System Specific |
| Rollers | Door System Specific |
| Counterbalance | Torsion Spring / System Specific |
| Spring Selection | Door Weight & Cycle Specific |
| Cable System | Door System Specific |
| Cable Drums | Door System Specific |
| Motor Type | Sectional Garage Door Operator |
| Drive Type | Belt / Chain / Shaft / Model Specific |
| Motor Capacity | Door Weight & Duty Specific |
| Motor Voltage | Model Specific |
| Operating Speed | Operator Specific |
| Duty Cycle | Operator Specific |
| Travel Limits | Electronic / Mechanical, Model Specific |
| Force Monitoring | Available on Suitable Operators |
| Remote Control | Available |
| Wall Switch | Available |
| Key Switch | Available |
| Mobile Control | Available Through Compatible Controller |
| GSM Control | Available |
| Smart Home Integration | Available |
| Safety Photocells | Available |
| Safety Edge | Available on Suitable Systems |
| Obstacle Detection | Operator / Controller Specific |
| Anti-Lift Protection | Available on Suitable Systems |
| Manual Release | Available |
| Battery Backup | Available on Compatible Operators |
| Weather Sealing | Side / Top / Bottom Seals, System Specific |
| Colour & Finish | Project Specific |
| Installation Type | New Installation / Replacement / Automation Upgrade |
Automatic Sectional Garage Doors should be selected as a complete mechanical and automation system. Opening dimensions, available headroom, panel weight, track arrangement, spring balance, operating frequency and required safety functions all influence the final specification. Spring and motor selection should always be calculated for the actual door configuration. AZTÖR Automation provides a free site inspection before final door and operator selection.
Typical Applications
- Luxury Villas
- Private Villas
- Townhouses
- Residential Compounds
- Private Garages
- Villa Parking Areas
- Apartment Buildings
- Residential Parking Areas
- Basement Garages
- Smart Homes
- Automated Villas
- Modern Villa Projects
- Premium Residences
- Garages with Limited Driveway Space
- Insulated Garages
- Air-Conditioned Garages
- Home Workshops
- Garage Renovation Projects
- Existing Garage Door Replacements
- New Residential Developments
