Automatic Telescopic Glass Doors
Automatic telescopic glass doors are designed for entrances where a conventional sliding door cannot provide enough clear opening. Instead of using one moving leaf on each side, multiple glass leaves slide and stack behind one another, allowing more of the available entrance width to be opened while using less lateral parking space.
This makes telescopic doors particularly useful in UAE buildings where the entrance is wide but the available wall or pocket space beside it is restricted. They are commonly considered for hotels, hospitals, commercial towers, retail entrances, showrooms and other locations where pedestrian flow and architectural appearance are equally important.
A telescopic system requires more careful planning than a standard sliding door because several leaves must move together accurately. During our free site inspection, AZTÖR checks the structural opening, required clear passage, available stacking space, individual leaf dimensions and weight, pedestrian traffic, floor condition, fixing points, power supply and surrounding architecture before proposing the system.
AZTÖR supplies complete telescopic entrance packages including the automatic operator, synchronised sliding mechanism, aluminium profiles, glass leaves, activation sensors, presence safety sensors, selector controls, locking and other accessories required for the project. Two-leaf and four-leaf telescopic arrangements can be considered depending on the opening and selected manufacturer.
For suitable UAE and GCC projects, systems can be selected from established automatic entrance manufacturers such as dormakaba, GEZE, ASSA ABLOY, TORMAX and other technically appropriate brands. The final manufacturer and operator are selected according to opening dimensions, leaf weight, expected traffic, required functions, spare-parts support and project specification.
Telescopic doors can also be integrated with access control, card readers, biometric readers, intercoms, push buttons and compatible building-control interfaces. Where security is required after operating hours, suitable locking and controlled-access arrangements can be incorporated into the entrance design.

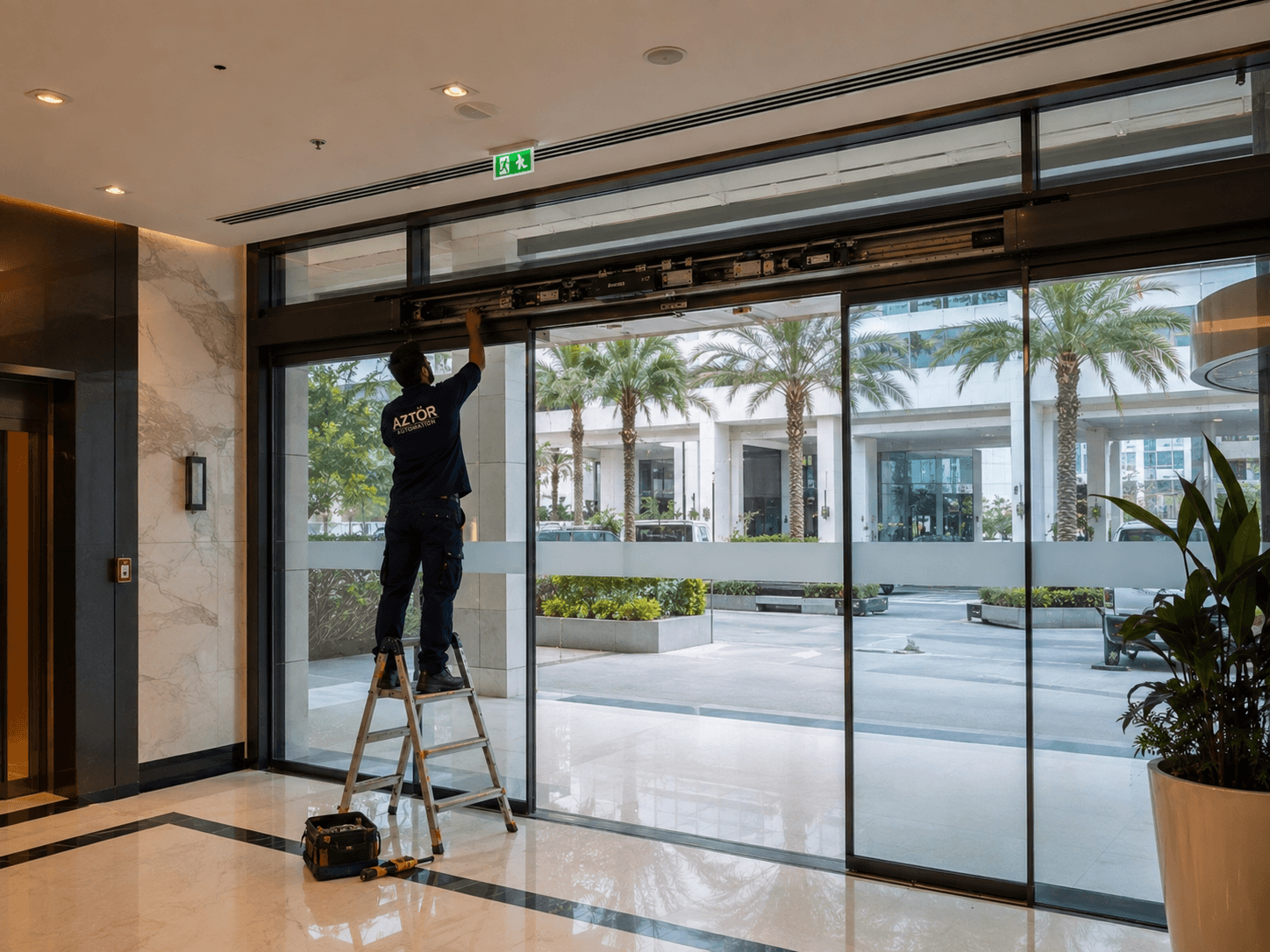

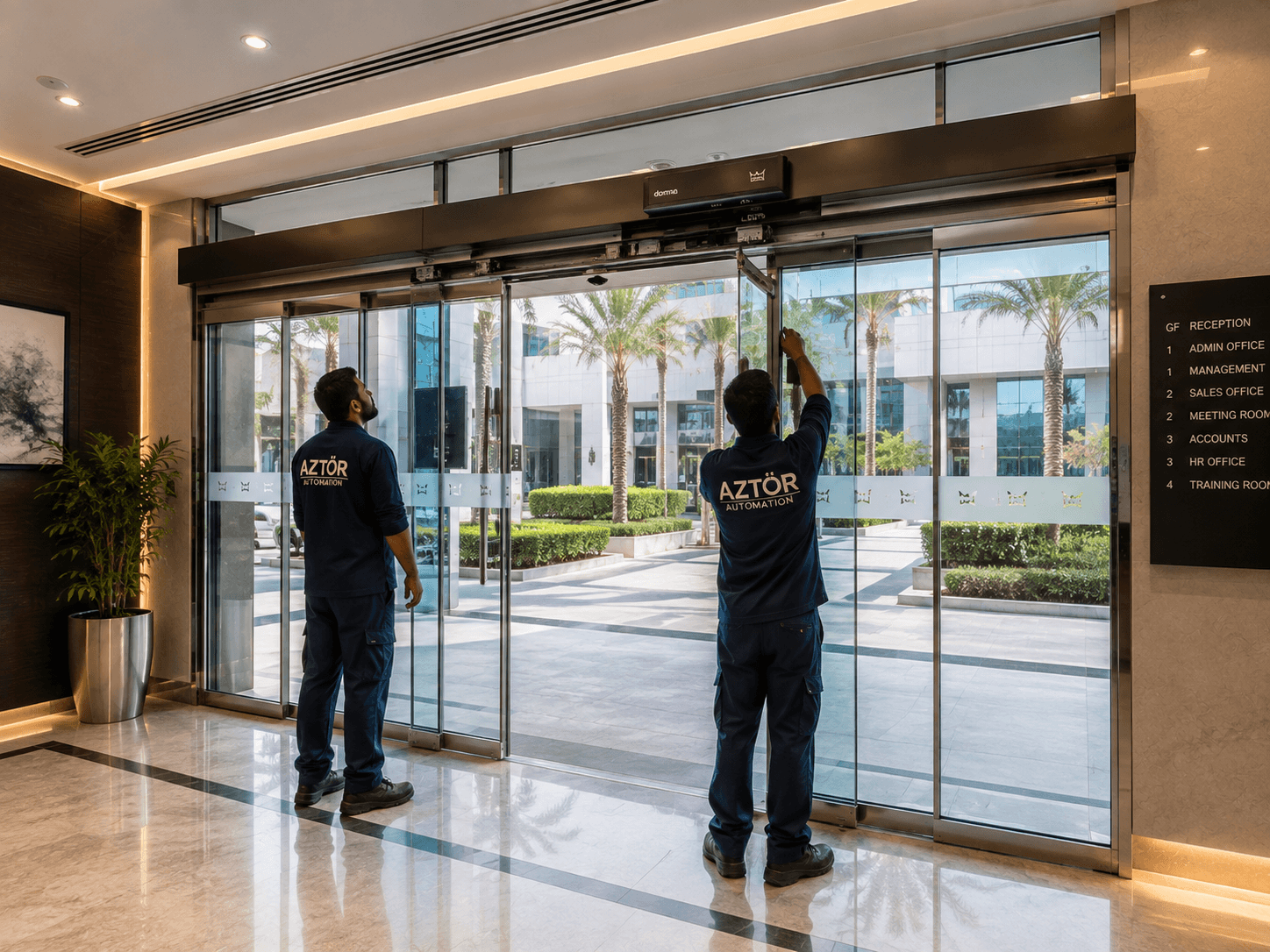

Because telescopic systems contain additional moving leaves, carriers and synchronisation components, correct adjustment and preventive maintenance are important for long-term performance. AZTÖR provides installation, commissioning, repair, modernisation and scheduled maintenance throughout the UAE, together with project and technical service support across the wider GCC.
Key Features
- Wider clear opening from limited available side space
- Two-leaf and four-leaf telescopic configurations
- Synchronised movement of multiple sliding leaves
- Framed, slim-framed and suitable glass entrance designs
- Automatic hands-free pedestrian activation
- Radar and active infrared sensor options
- Presence detection for safer pedestrian movement
- Adjustable opening, closing and hold-open settings
- Automatic, open, partial-open and controlled operating modes
- Access control and biometric integration
- Locking options for controlled entrances
- Battery backup or emergency operation options where specified
- Quiet operation for occupied commercial environments
- Suitable for high pedestrian traffic when correctly specified
- New installation, repair and modernisation options
- Preventive maintenance and breakdown support
Technical Specification
| Configuration | Telescopic single-side or bi-parting telescopic |
|---|---|
| Leaf Arrangement | Typically two or four moving leaves depending on system design |
| Door Type | Framed, slim-framed or suitable glass configuration |
| Glass | Toughened or laminated safety glass as specified |
| Drive System | Electromechanical telescopic automatic door operator |
| Leaf Movement | Mechanically synchronised telescopic sliding |
| Activation | Radar, active infrared, push button or access control |
| Safety | Presence detection and compatible safety sensors |
| Operating Modes | Automatic, open, partial open, exit-only and controlled/night mode depending on operator |
| Power Supply | Typically 220–240V AC, subject to selected operator |
| Locking | Electromechanical locking options where required |
| Backup Operation | Battery or emergency opening option where specified |
| Access Control | Card, biometric, keypad, intercom or compatible third-party system |
| BMS Interface | Available where supported by the selected operator and control system |
| Leaf Capacity | Determined by selected operator, leaf dimensions and glass weight |
| Clear Opening | Engineered according to structural opening, stacking space and selected system |
| Finish | Anodised, powder-coated or project-specific aluminium finish |
| Installation | New entrance or suitable retrofit subject to site assessment |
| Maintenance | Preventive maintenance, synchronisation adjustment and corrective repair available |
Telescopic door dimensions and capacities vary considerably between manufacturers and configurations. AZTÖR confirms the final leaf arrangement, operator, glass specification, sensors and accessories after a free site inspection of the opening, available stacking space, traffic level and site conditions.
Typical Applications
- Hotel and resort entrances
- Commercial towers
- Office building lobbies
- Shopping malls
- Retail entrances
- Hospitals and medical centres
- Clinics and healthcare facilities
- Residential tower lobbies
- Car showrooms
- Airports and transport facilities
- Banks and financial institutions
- Government buildings
- Premium hospitality venues
- Mixed-use developments
- Entrances with restricted side parking space
- High-traffic pedestrian entrances
