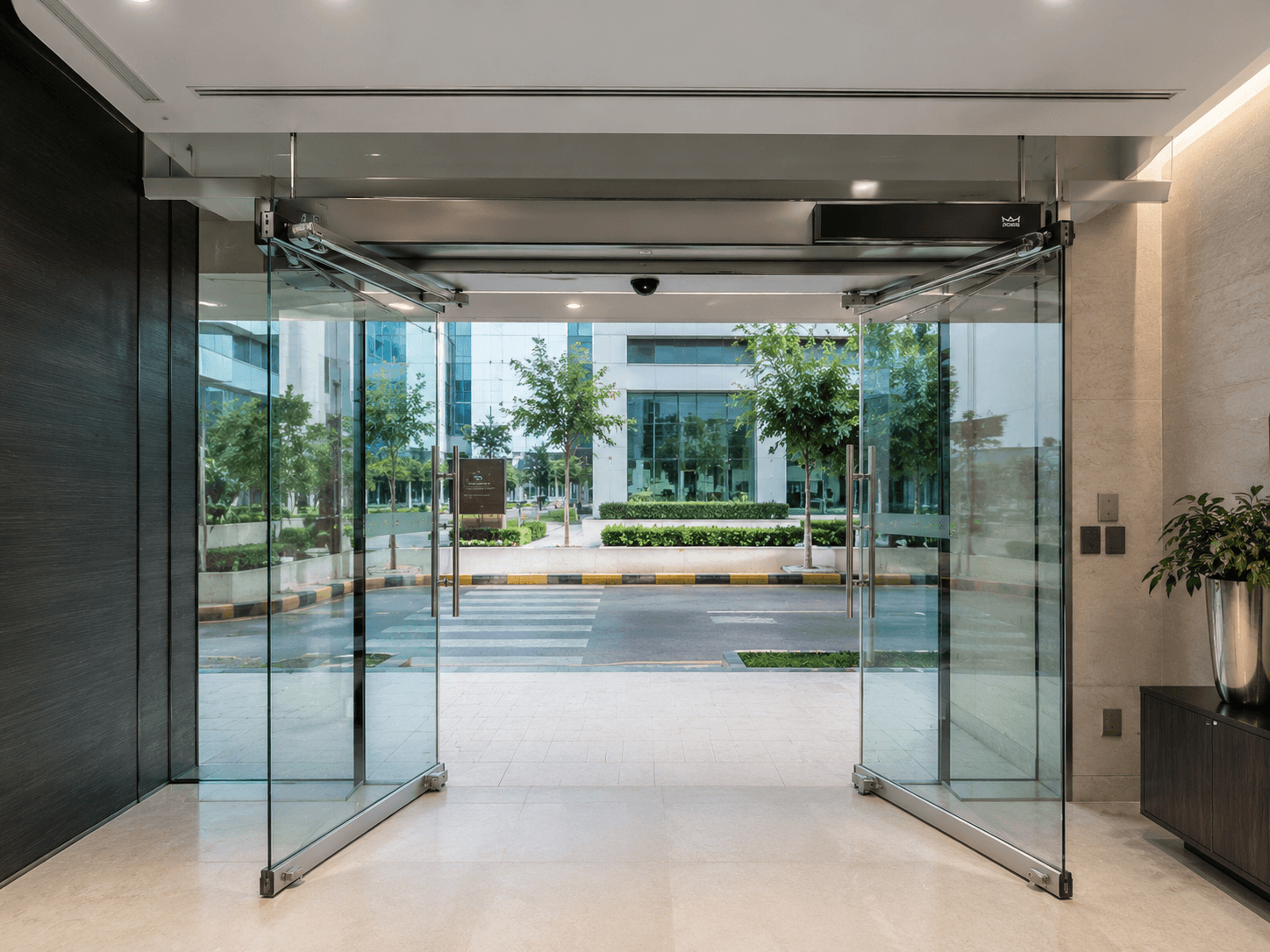

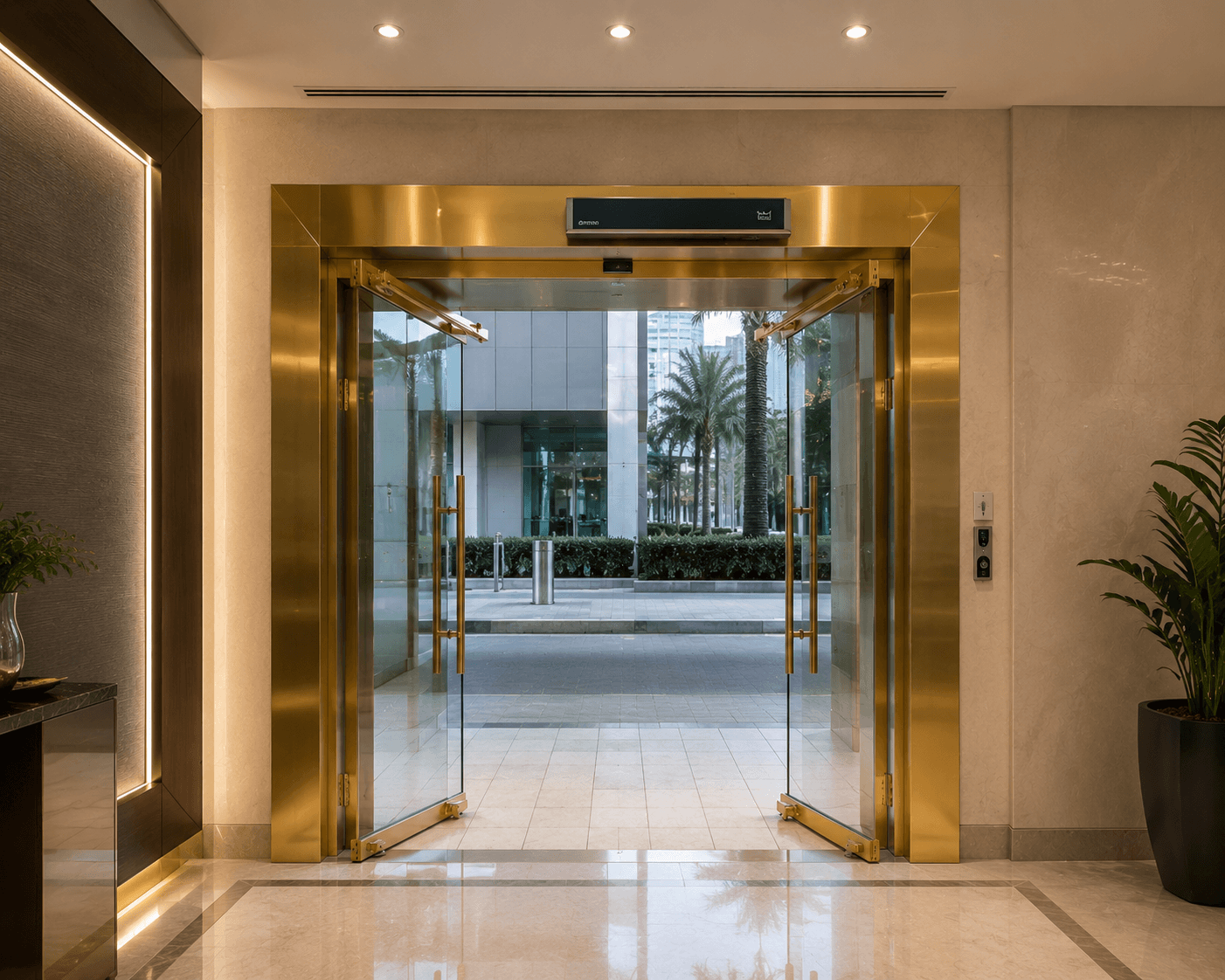

Automatic Swing Glass Doors
Automatic Swing Glass Doors combine a conventional hinged glass door with a compact automatic operator that opens and closes the leaf safely and smoothly. They are particularly useful where a sliding entrance is not practical because of limited side space, or where an existing manual swing door needs to be upgraded to automatic operation.
AZTÖR Automation supplies, installs, programmes and maintains automatic swing door systems for commercial, residential, healthcare, hospitality and public buildings across the UAE and wider GCC. Solutions can be configured for single-leaf or double-leaf doors and for framed, patch-fitted or suitable glass entrance arrangements depending on the door construction and selected operator.
Swing door automation is also an effective retrofit solution. In many UAE properties, an existing manual glass, aluminium, timber or metal door can be automated without replacing the complete entrance. AZTÖR provides a free site inspection to assess the door condition, hinges, pivot points, leaf weight, opening angle, structural fixing, available power, pedestrian movement and safety requirements before recommending an operator.
Depending on the application and product availability, AZTÖR can work with established automatic door brands used across the UAE and GCC, including dormakaba, GEZE, ASSA ABLOY, TORMAX and other suitable manufacturers. Operator selection is based on the actual door rather than simply choosing a motor by appearance or price.
Automatic swing doors can be activated using radar or presence sensors, push buttons, touchless switches, access-control systems, card readers, biometric readers or other authorised inputs. For controlled entrances, the door can remain securely closed until access is granted and then automatically open for the authorised user.
Safety is particularly important because a swing leaf travels through an arc rather than sliding parallel to the entrance. Appropriate safety sensors and operating parameters are therefore selected according to pedestrian traffic, door speed, opening direction and surrounding space. AZTÖR also provides preventive maintenance, operator replacement, sensor replacement, control-board repair and emergency breakdown support for existing swing door systems.
Key Features
- Single-leaf and double-leaf automatic swing configurations
- Suitable for new entrances and retrofit automation
- Compact overhead swing door operator
- Push-arm and pull-arm configurations depending on door arrangement
- Framed and suitable glass door applications
- Low-energy and full-power configurations depending on application
- Radar, touchless switch and push-button activation options
- Safety and presence sensor integration
- Adjustable opening speed, closing speed and hold-open time
- Access control and biometric integration
- Electromechanical locking integration where required
- Manual operation options depending on selected operator
- Battery backup or emergency operation options where specified
- Suitable for inward-opening or outward-opening arrangements subject to site conditions
- Quiet operator options for offices, hotels and healthcare environments
- Preventive maintenance, repair and retrofit support
Technical Specification
| Door Configuration | Single-leaf or double-leaf swing |
|---|---|
| Door Construction | Glass, aluminium-framed, timber or metal doors subject to operator compatibility |
| Operator Type | Electromechanical automatic swing door operator |
| Operator Position | Typically overhead mounted |
| Arm Configuration | Push arm, pull arm or compatible sliding arm depending on installation |
| Opening Direction | Inward or outward depending on entrance design |
| Activation | Radar sensor, touchless switch, push button or access control |
| Safety Detection | Presence and swing-path safety sensors where required |
| Operating Mode | Automatic, manual, hold-open and controlled modes depending on operator |
| Opening Angle | Configured according to operator, door geometry and site conditions |
| Opening Speed | Adjustable within selected operator and safety parameters |
| Closing Speed | Adjustable within selected operator and safety parameters |
| Hold-Open Time | Programmable according to application |
| Power Supply | Typically 220–240V AC, 50/60Hz depending on selected operator |
| Locking | Compatible electric strike, magnetic lock or electromechanical locking where specified |
| Access Control | Card reader, biometric reader, keypad, intercom or authorised third-party interface |
| Emergency Operation | Battery backup or project-specific emergency function where required |
| BMS Integration | Available with compatible operator/control interface |
| Door Leaf Weight | Operator selected according to actual leaf weight, width and configuration |
| Finish | Operator covers and door framing available in project-specific finishes |
| Installation | New installation or retrofit subject to structural and door-condition assessment |
| Maintenance | Preventive maintenance, repair, adjustment and component replacement available |
Final operator specification is confirmed after a free site inspection. Door width, leaf weight, hinge or pivot condition, opening direction, required opening angle, pedestrian traffic, structural fixing, wind exposure, access-control requirements and safety conditions are assessed before the operator and sensor package are selected.
Typical Applications
- Office and commercial building entrances
- Corporate offices and meeting areas
- Hotel entrances and internal doors
- Hospitals and medical centres
- Clinics and pharmacies
- Accessible and assisted entrances
- Residential tower lobbies
- Apartment common areas
- Banks and financial institutions
- Government and public buildings
- Schools and universities
- Retail stores and showrooms
- Restaurants and hospitality venues
- Staff and controlled-access entrances
- Existing manual door retrofit projects
