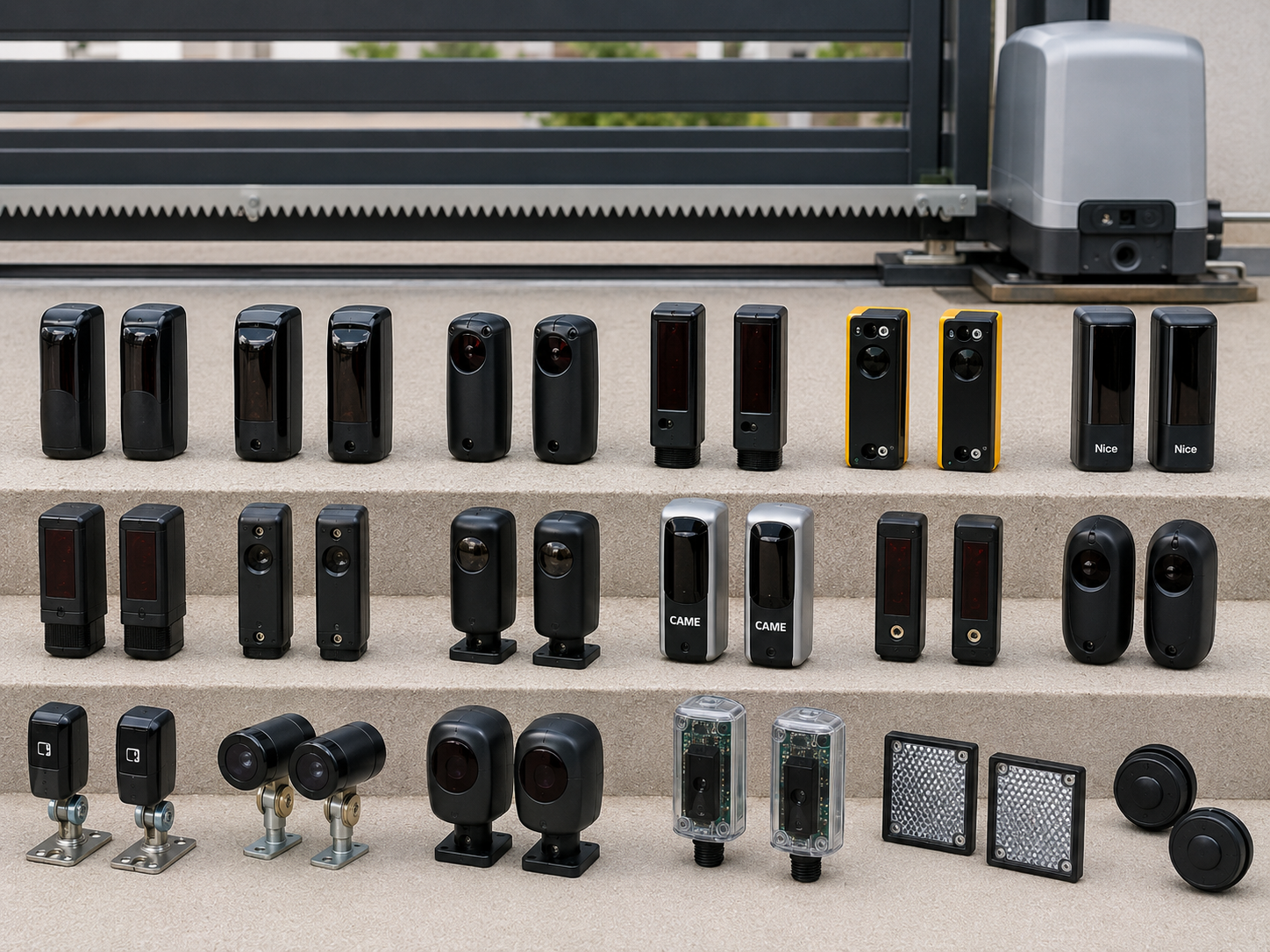

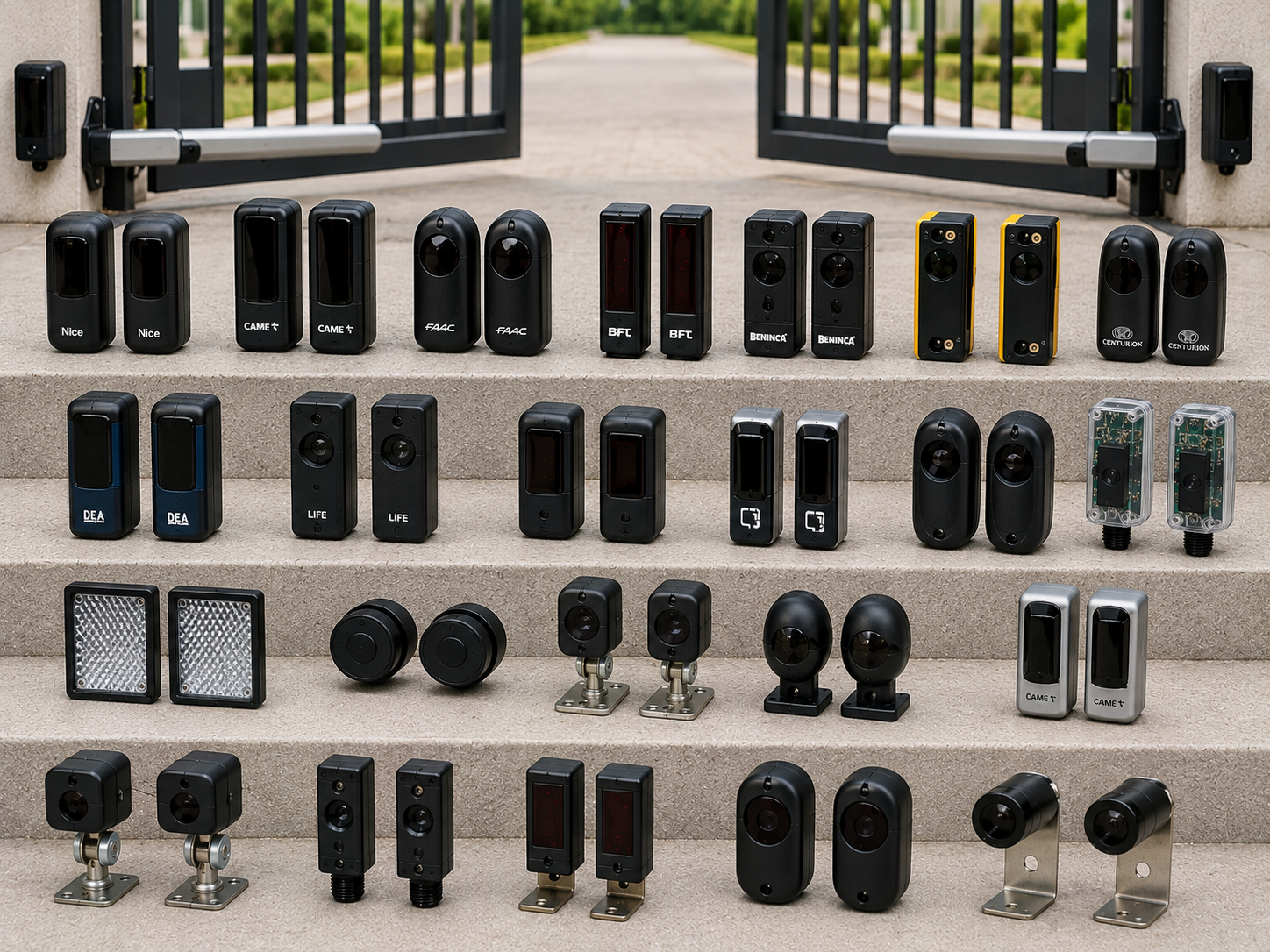

Safety Photocells
Safety photocells are an important part of an automatic gate safety system. Installed in suitable positions around the entrance, they use a photoelectric beam or manufacturer-specific detection arrangement to identify the presence of a vehicle, person or obstruction within the protected area and communicate that condition to the gate controller.
A photocell does not physically stop a gate by itself. It sends a safety input to the automation control board, which then responds according to its programmed logic. Depending on the gate system and operating phase, this may prevent closing, stop movement or cause the gate to reopen.
AZTÖR installs safety photocells for automatic sliding gates, swing gates, cantilever gates, folding and bi-folding gates, trackless gates and suitable heavy-duty commercial or industrial gate systems. The number and position of photocells are determined by the gate movement, entrance geometry and required safety arrangement rather than simply installing one pair at every site.
For sliding gates, photocells can help protect the vehicle passage and closing area. Additional protection may be required around other hazardous movement zones, particularly where a sliding gate travels beside a wall, fence or accessible area.
Swing gates require careful consideration because each leaf moves through a large arc. Photocell positioning should reflect the actual sweep of the gate, vehicle stopping position, pedestrian movement and whether the leaves open inward or outward.
Correct alignment is essential. A photocell transmitter and receiver must maintain reliable communication, while reflective systems require the appropriate reflector arrangement. Poor mounting, unstable posts, incorrect alignment, damaged wiring or unsuitable positioning can lead to intermittent gate faults.
Outdoor gate photocells in the UAE are exposed to heat, dust, sand and direct sunlight. Product selection and installation therefore need to consider the manufacturer's environmental rating, operating temperature, enclosure design and actual mounting location. Regular cleaning is also important because contamination can interfere with optical performance.
AZTÖR works with compatible safety accessories from established gate automation manufacturers such as FAAC, CAME, BFT, Nice and Benincà, together with other suitable systems used in UAE and GCC gate installations. Where an existing gate uses another brand, compatibility with its control board is checked before replacement.
Wired photocells are commonly used where suitable cabling is available. Depending on the selected automation platform, wireless or simplified installation options may also be available for applications where running new cables is difficult. The appropriate solution depends on the gate controller and manufacturer.
Safety photocells should not be treated as the only protection required for every automatic gate. Depending on the gate design and risk areas, photocells may need to work together with safety edges, obstacle detection, vehicle loops, warning devices and appropriate control settings.
AZTÖR also troubleshoots existing gate photocell faults. Typical symptoms include a gate that refuses to close, closes only in manual mode, reopens unexpectedly, stops intermittently or shows a safety-input fault. We inspect alignment, lenses, wiring, power supply, terminals, control-board inputs and the photocell itself before recommending replacement.
Bypassing a faulty safety photocell simply to keep an automatic gate operating can remove an important protective function. AZTÖR recommends identifying and correcting the fault rather than permanently disabling a safety device.
AZTÖR provides gate safety photocell installation, replacement, alignment, repair and preventive maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable gate automation support available across the wider GCC.
Key Features
- Automatic gate safety detection
- Photoelectric obstacle and presence detection
- Sliding gate photocell solutions
- Swing gate photocell solutions
- Cantilever gate photocell solutions
- Folding and bi-folding gate photocells
- Heavy-duty gate safety integration
- Residential gate applications
- Commercial and industrial gate applications
- Wired photocell options
- Wireless options where supported
- Through-beam detection systems
- Reflective configurations where applicable
- Gate closing-area protection
- Vehicle passage detection
- Pedestrian presence protection according to system design
- Compatible control-board safety inputs
- Automatic reopening logic where configured
- Gate closing inhibition when obstruction is detected
- Multiple photocell pair configurations where required
- Outdoor-rated options for suitable applications
- Surface-mounted installation options
- Post-mounted installation options
- Existing photocell replacement
- Photocell alignment and adjustment
- Wiring and control-board troubleshooting
- Safety-system testing
- Preventive maintenance and cleaning
Technical Specification
| Product Type | Automatic gate safety photocell |
|---|---|
| Detection Technology | Photoelectric infrared or manufacturer-specific optical detection |
| Application | Automatic vehicle gate safety |
| Gate Compatibility | Sliding, swing, cantilever, folding and compatible automatic gates |
| Configuration | Transmitter/receiver, reflective or manufacturer-specific arrangement |
| Installation | Surface, post or project-specific mounting |
| Connection | Wired or compatible wireless arrangement depending on selected system |
| Control Interface | Compatible safety input on gate automation controller |
| Safety Function | Presence or obstruction detection according to configured control logic |
| Gate Response | Prevent closing, stop or reopen according to controller programming and system design |
| Detection Range | Manufacturer and installation specific |
| Power Supply | According to selected photocell and gate controller |
| Alignment | Required according to selected photocell technology |
| Outdoor Use | Subject to selected product environmental rating |
| Ingress Protection | Manufacturer-specific; selected according to installation environment |
| Operating Temperature | According to selected manufacturer's specification |
| Status Indication | LED or manufacturer-specific diagnostic indication where provided |
| Multiple Pairs | Available where supported and required by entrance design |
| Safety Edge Integration | Can form part of a wider gate safety system |
| Loop Detector Integration | Compatible as part of the overall vehicle-access system |
| Control Board Compatibility | Confirmed according to automation manufacturer and controller |
| Replacement | Existing photocell replacement subject to compatibility |
| Maintenance | Cleaning, alignment, wiring and operational testing available |
Photocell quantity, type and mounting position must be determined from the actual gate movement and entrance layout. A single pair of photocells should not automatically be assumed to protect every potential hazard area. AZTÖR checks the gate type, opening and closing movement, vehicle path, pedestrian exposure, controller compatibility and existing safety devices during a free site inspection before confirming the appropriate arrangement.
Typical Applications
- Private villa gates
- Residential community entrances
- Apartment vehicle entrances
- Gated communities
- Commercial building gates
- Office compounds
- Hotels and resorts
- Schools and universities
- Warehouses
- Logistics centres
- Distribution centres
- Factories
- Manufacturing plants
- Industrial compounds
- Staff accommodation
- Government facilities
- Data centres
- Utility facilities
- Car parks
- Fleet entrances
- Security checkpoints
- Sliding gates
- Swing gates
- Cantilever gates
- Folding and bi-folding gates
- Trackless gates
- Heavy-duty automatic gates
- Existing automatic gate safety upgrades
- Gate photocell replacement projects
