Fisheye Camera CCTV
Fisheye Camera CCTV uses an ultra-wide-angle lens to capture a panoramic view from a single camera position. When correctly positioned, one camera can monitor a much wider area than a conventional fixed CCTV camera.
AZTÖR Automation supplies, installs and maintains Fisheye CCTV Cameras for retail stores, offices, hotels, warehouses, showrooms, reception areas, schools and commercial properties across the UAE.

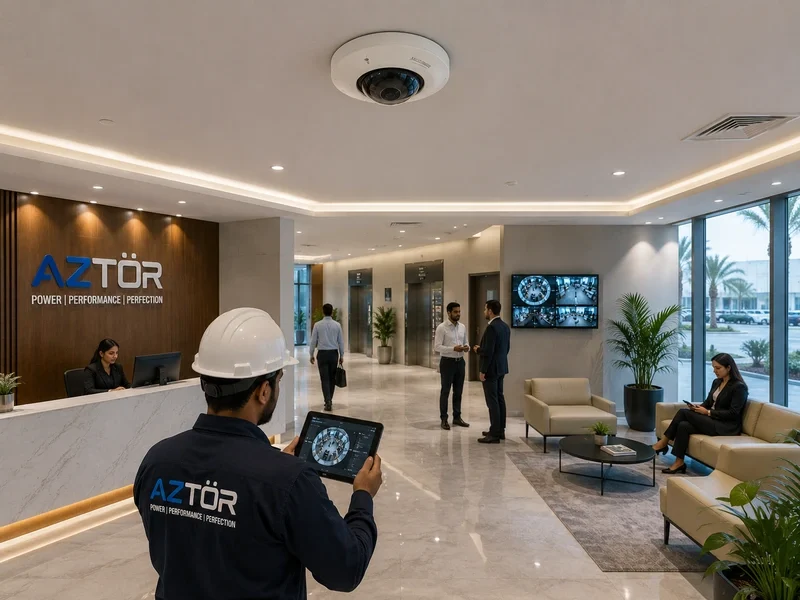

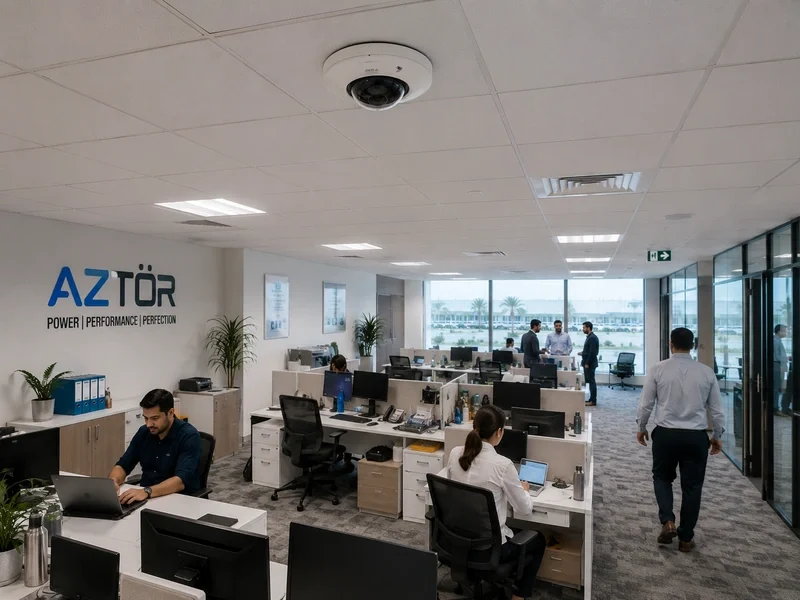

Ceiling-mounted Fisheye Cameras are commonly used for 360° room coverage, while wall-mounted installations can provide approximately 180° panoramic monitoring depending on the camera and mounting arrangement.
The original fisheye image appears circular or heavily curved because of the ultra-wide lens. Compatible NVR or VMS platforms can provide dewarping, converting the panoramic image into easier-to-view virtual perspectives without physically moving the camera.
Depending on the selected model, users can view the full panorama together with multiple digitally dewarped views. This makes Fisheye CCTV useful for monitoring open spaces, shop floors, reception areas and other locations where reducing blind spots is important.
Professional Fisheye Cameras are available with different resolutions, low-light capabilities, WDR and AI analytics. Suitable models can support people counting, heat mapping, intrusion detection and other business or security analytics.
Fisheye CCTV can be integrated with compatible NVR and VMS platforms for recording, playback, dewarping and remote monitoring. Recorder and software compatibility should be checked carefully because panoramic viewing and analytics capabilities vary between platforms.
A Fisheye Camera can reduce the number of conventional cameras required in suitable spaces, but it should not automatically replace dedicated cameras where detailed facial, entrance, cash-counter or long-distance identification is required.
AZTÖR provides new Fisheye CCTV installation, camera replacement, NVR/VMS integration, dewarping configuration, system upgrades, troubleshooting and preventive maintenance.
Free site inspection is available for suitable projects. AZTÖR Automation provides Fisheye CCTV solutions across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable project support across the GCC.
Key Features
- 180° Panoramic Viewing
- 360° Panoramic Viewing
- Ultra-Wide-Angle Lens
- Ceiling Mounting
- Wall Mounting Options
- Digital Dewarping
- Multiple Virtual Views
- Panoramic Recording
- High-Resolution Imaging
- Wide Dynamic Range
- Low-Light Imaging
- Day & Night Options
- AI Analytics Options
- People Counting Options
- Heat Mapping Options
- Intrusion Detection
- Motion Detection
- Reduced Blind Spots
- NVR Integration
- VMS Integration
- ONVIF Support on Compatible Models
- PoE Options
- Edge Storage Options
- Remote Viewing
- Mobile Monitoring
- Indoor & Outdoor Models
- Installation & Configuration
- Repair, Maintenance & AMC
Technical Specification
| Camera Type | Fisheye / Panoramic IP CCTV Camera |
|---|---|
| Image Sensor | CMOS, Model Specific |
| Resolution | Typically 5MP–12MP+, Model Specific |
| Lens Type | Fixed Ultra-Wide Fisheye Lens |
| Focal Length | Model Specific |
| Horizontal Coverage | Up to 180° / 360° Depending on Installation |
| Panoramic Coverage | Model & Mounting Specific |
| Ceiling View | 360° Panoramic on Suitable Models |
| Wall View | Up to 180° Panoramic on Suitable Models |
| Image Dewarping | Supported on Compatible Camera / NVR / VMS |
| Dewarped Views | Panorama / PTZ-Style / Multi-View, Platform Specific |
| Digital PTZ | Available Through Dewarping on Suitable Systems |
| Optical PTZ | Not Applicable to Standard Fisheye Cameras |
| Minimum Illumination | Model Specific |
| Wide Dynamic Range | Up to 120 dB+ on Suitable Models |
| Day / Night | Available on Suitable Models |
| IR Illumination | Available on Selected Models |
| AI Analytics | Available on Suitable Models |
| People Counting | Available on Suitable Models |
| Heat Mapping | Available on Suitable Models |
| Intrusion Detection | Available on Suitable Models |
| Video Compression | H.265 / H.265+ / H.264, Model Specific |
| Frame Rate | Resolution & Model Specific |
| Network Interface | RJ45 Ethernet |
| ONVIF | Available on Compatible Models |
| Recording | NVR / VMS |
| Edge Storage | microSD on Suitable Models |
| PoE | Available on Suitable Models |
| Audio | Built-In / Audio I/O on Selected Models |
| Alarm I/O | Available on Selected Models |
| Outdoor Protection | IP66 / IP67 on Suitable Models |
| Impact Protection | IK Rating on Selected Models |
| Operating Temperature | Model Specific; UAE Suitability to Be Verified |
| Mounting | Ceiling, Wall or Application Specific |
| Remote Monitoring | NVR / VMS / Desktop / Mobile |
| Installation Type | New Installation, Replacement or CCTV Upgrade |
Fisheye CCTV should be selected according to room dimensions, mounting height, required panoramic coverage and the level of image detail needed at different points in the scene. Higher megapixel resolution does not guarantee identification quality across the entire 360° image. NVR/VMS dewarping compatibility, bandwidth and storage should also be checked before installation. AZTÖR Automation provides a free site inspection before final camera selection.
Typical Applications
- Retail Stores
- Shopping Centres
- Supermarkets
- Showrooms
- Office Buildings
- Open-Plan Offices
- Reception Areas
- Hotel Lobbies
- Hotels
- Restaurants
- Schools & Universities
- Hospitals & Clinics
- Warehouses
- Indoor Storage Areas
- Building Lobbies
- Lift Lobbies
- Waiting Areas
- Public Spaces
- Commercial Halls
- Large Indoor Areas
