Automatic Revolving Doors Dubai & UAE

Revolving Doors

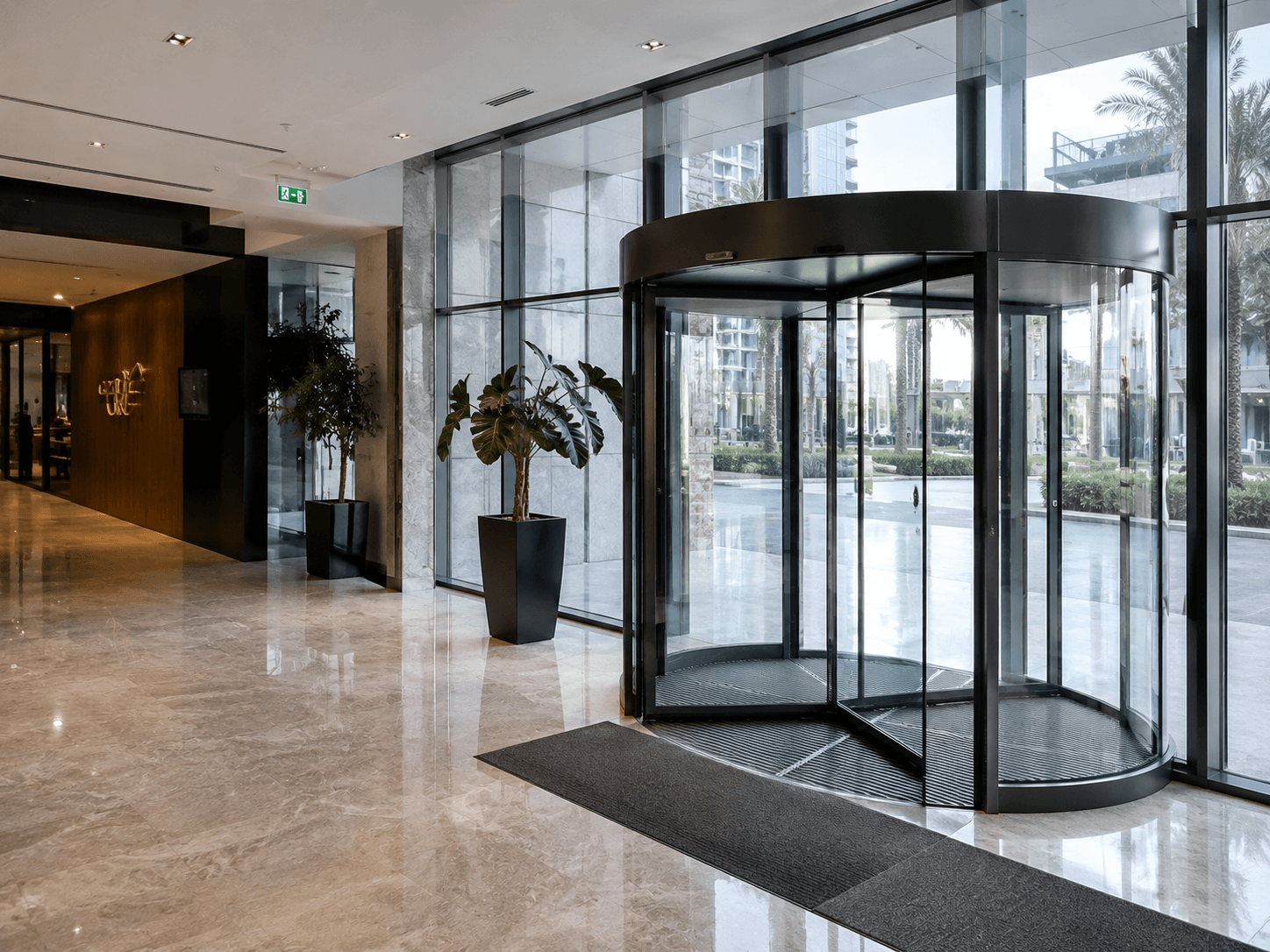

Revolving doors create a continuously controlled entrance between the indoor and outdoor environment. Instead of opening the building directly to the outside each time someone enters, rotating door wings move pedestrians through separate compartments, making revolving entrances particularly useful for busy air-conditioned buildings in the UAE.

For hotels, commercial towers, corporate headquarters, shopping destinations and other premium properties, this separation can help reduce the direct exchange of conditioned indoor air with hot, humid or dusty outdoor air. A correctly designed revolving entrance can therefore improve lobby comfort while providing a distinctive architectural arrival experience.

Revolving doors are available in several configurations, including manual and automatic systems, three-wing and four-wing arrangements, and larger-capacity designs for entrances with heavier pedestrian traffic. The correct solution depends on the available entrance diameter, expected traffic, required clear passage, façade design, accessibility strategy and building operation.

AZTÖR provides a free site inspection and technical assessment before recommending a revolving door. We review the structural opening, available diameter, finished floor, ceiling and canopy conditions, pedestrian flow, façade interfaces, electrical provision, wind exposure, accessibility requirements and the way people actually enter and leave the building.

Safety is particularly important because several moving components share the same pedestrian space. Automatic revolving doors therefore require an appropriately designed combination of presence detection, contact protection, speed monitoring, emergency controls and other safety functions according to the selected system and project requirements.

For suitable UAE and GCC projects, AZTÖR can work with revolving entrance systems from established manufacturers such as dormakaba, ASSA ABLOY, GEZE and other specialist automatic entrance brands. The manufacturer and model are selected according to entrance diameter, traffic capacity, architectural requirements, safety functions, project specification and long-term serviceability.

Where security is part of the entrance requirement, suitable revolving door systems can also be combined with access control and authorised-entry functions. The exact configuration depends on whether the entrance is intended primarily for unrestricted pedestrian traffic, controlled staff access or a higher-security application.

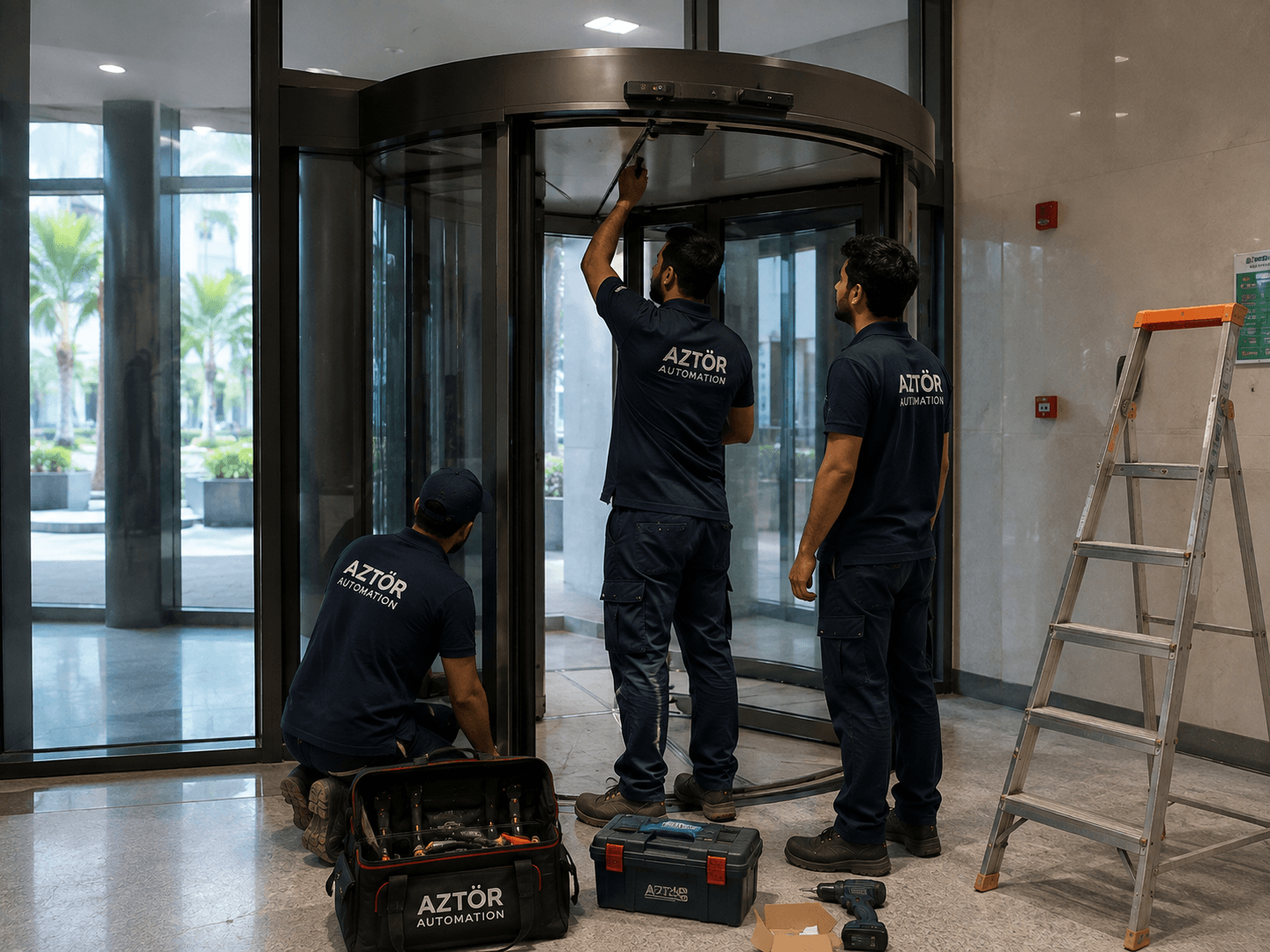

Existing revolving doors can often be maintained or repaired without replacing the complete entrance. AZTÖR can inspect operators, drive components, sensors, controls, door wings, brushes, floor interfaces, safety devices and other serviceable components before recommending adjustment, repair, modernisation or replacement.

AZTÖR provides revolving door installation, commissioning, repair and preventive maintenance across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Suitable commercial and hospitality projects can also be supported across the wider GCC.

Key Features

Automatic and manual revolving door configurations
Three-wing and four-wing designs
Continuous controlled pedestrian entrance
Reduced direct exchange between indoor and outdoor air
Suitable for heavily air-conditioned UAE buildings
Smooth pedestrian flow for busy entrances
Automatic speed control on compatible systems
Presence and movement safety detection
Contact and obstruction safety functions
Emergency stop controls
Configurable operating modes
Access control integration where required
Architectural glass and aluminium construction
Stainless-steel and premium finish options
Night closure options where specified
Suitable for high-traffic commercial entrances
Custom diameter and entrance configuration
New installation and existing-system modernisation
Preventive maintenance and specialist repair support

Technical Specification

Door Type	Automatic or manual revolving entrance
Configuration	Three-wing, four-wing or specialist configuration
Operation	Automatic, manual or assisted depending on selected system
Diameter	Project-specific according to traffic, architecture and selected manufacturer
Door Wings	Toughened or laminated safety glass with suitable framing
Side Walls	Curved safety glazing or manufacturer-specific enclosure
Canopy	Aluminium, stainless steel or project-specific construction
Drive System	Electromechanical drive for automatic configurations
Speed Control	Controlled according to selected operator and safety requirements
Activation	Automatic detection, push control or authorised access where applicable
Safety	Presence, contact, obstruction and movement protection according to selected system
Emergency Stop	Emergency stop controls provided according to system requirements
Operating Modes	Automatic, manual, reduced speed, closed or project-specific modes
Power Supply	Typically 220–240V AC for automatic systems, subject to selected operator
Access Control	Compatible authorised-entry interface where required
Locking	Night locking or controlled locking options according to selected system
BMS Interface	Available where supported by the selected control system
Fire Alarm Interface	Project-specific interface where required and compatible
Glazing	Safety glass according to selected system and project specification
Finish	Anodised aluminium, powder coating, stainless steel or architectural finish
Installation	Specialist installation coordinated with façade, floor and electrical works
Maintenance	Preventive maintenance, safety inspection and corrective repair available

Revolving doors must be selected around pedestrian traffic, entrance diameter, building use, accessibility, façade conditions and required safety functions. AZTÖR confirms the final configuration, operator, sensors and controls following a free site inspection and technical review. Any specific security, emergency-egress or certified performance requirement must be verified against the selected complete door system and applicable project requirements.

Typical Applications

Five-star hotels
Luxury resorts
Commercial towers
Corporate headquarters
Office building entrances
Shopping malls
Premium retail developments
Banks and financial institutions
Government buildings
Airports and transport facilities
Convention centres
Exhibition venues
Mixed-use developments
Premium residential towers
Large healthcare facilities
High-traffic public buildings
Architectural landmark entrances
Air-conditioned entrance lobbies

Frequently Asked Questions

A revolving door consists of multiple door wings rotating around a central axis within an enclosure. Pedestrians enter and leave through separate moving compartments without creating the large direct opening associated with conventional entrance doors.

UAE buildings operate with substantial air-conditioning for much of the year. A revolving entrance maintains greater separation between indoor and outdoor environments during pedestrian movement, helping reduce direct exposure of the lobby to hot, humid or dusty outside air.

They can help reduce uncontrolled air exchange at frequently used entrances compared with doors that repeatedly expose the complete opening. Actual building energy performance depends on traffic, entrance design, HVAC operation and the overall building envelope.

Yes. AZTÖR provides a free site inspection or technical assessment for applicable revolving door projects to review dimensions, pedestrian traffic, façade conditions, floor levels, electrical requirements and safety considerations.

Depending on the project specification, AZTÖR can work with established revolving door manufacturers such as dormakaba, ASSA ABLOY, GEZE and other specialist entrance brands suitable for UAE and GCC projects.

The number of wings changes the size and geometry of the pedestrian compartments and can influence entrance capacity and user movement. The most suitable arrangement depends on the entrance diameter, expected traffic and project requirements.

Yes. Automatic revolving doors use a controlled drive system together with activation and safety devices to manage rotation according to pedestrian movement and the selected operating mode.

Yes. Manual revolving doors can be appropriate for certain entrances where powered operation is unnecessary. The choice between manual and automatic operation depends on traffic, accessibility and building requirements.

Modern automatic revolving doors can incorporate multiple safety functions such as presence detection, obstruction protection, controlled speed and emergency stop devices. The final safety arrangement depends on the selected system and applicable requirements.

Suitable larger-diameter systems can provide more space for wheelchairs, luggage and other users. Accessibility must be considered during the entrance design, and an appropriate accessible alternative entrance may also be required depending on the project.

Yes. Suitable systems can be integrated with authorised access-control functions where required. Higher-security revolving entrances require specialist configurations designed specifically for controlled entry.

Yes. AZTÖR can inspect suitable existing revolving doors for faults involving operators, drives, sensors, safety devices, controls, door wings, brushes and alignment. Repair depends on system condition and spare-part availability.

In some cases, yes. If the enclosure and mechanical structure remain serviceable, selected operators, controls or safety components may be modernised. A technical inspection is required before deciding whether retrofit or complete replacement is more practical.

Maintenance frequency depends on pedestrian traffic, operating hours, environment and manufacturer requirements. High-traffic hotel, mall and commercial entrances generally require closer preventive attention than lightly used entrances.

Yes. AZTÖR can provide preventive maintenance and AMC support covering scheduled inspection, operator checks, safety devices, sensors, adjustments and fault identification according to the agreed scope.

AZTÖR provides revolving door services across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain, with suitable project support available across the wider GCC.
